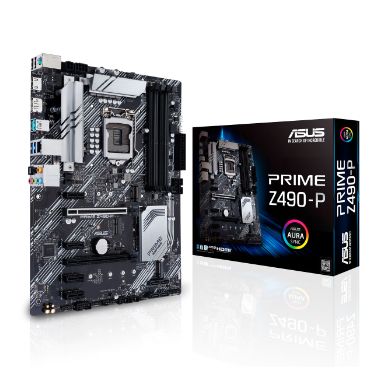

ASUS PRIME Z490-P - Motherboard - ATX - LGA1200 Socket - Z490 - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LA
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
Thunderbolt headers
1
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
3
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z490
Parallel processing technology support
2-Way CrossFireX
HDMI version
1.4b
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
8 channels
Performance
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
Motherboard chipset
Intel Z490
RAID levels
0-1-5-10
Audio output channels
8 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum number of SMP processors
1
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-5-10
Graphics
Parallel processing technology support
2-Way CrossFireX
Maximum resolution
4096 x 2304 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
USB 2.0 ports quantity
2
S/PDIF out port
Yes
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI version
1.4b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset family
Intel
Motherboard chipset
Intel Z490
Audio output channels
8 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
4
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
Video
Maximum resolution
4096 x 2304 pixels
Weight & dimensions
Width
305 mm
Depth
234 mm
ASUS PRIME Z490-P - Motherboard - ATX - LGA1200 Socket - Z490 - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LA
