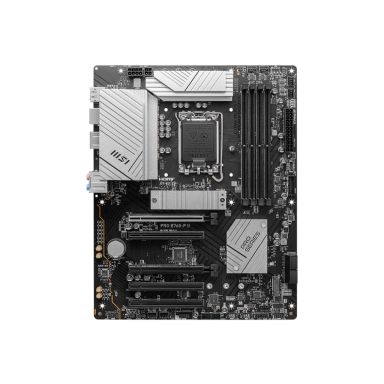

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX
In Stock
|
$138.94
$166.73 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
PCI Express 4.0, SATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
S/PDIF out connector
Yes
Power fan connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Maximum internal memory supported by processor
256 GB
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
RAID levels
0, 1, 5, 10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum internal memory supported by processor
256 GB
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Pentium® Gold
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
7000 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive interfaces
PCI Express 4.0, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
4
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek RTL8125-BG
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC897
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
6.4
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
3.5
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Drivers included
Yes
Weight & dimensions
Width
243.8 mm
Depth
304.8 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
PCI Express x1 (Gen 4.x) slots
2
MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX
