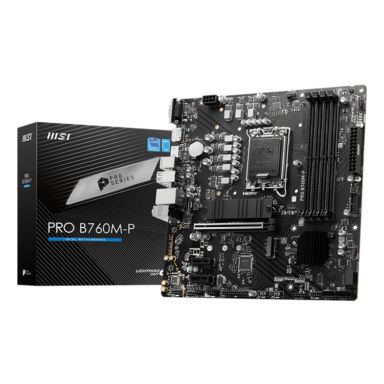

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX
In Stock
|
$107.99
$129.59 (Inc. VAT)
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported processor sockets
LGA 1700
HDMI version
1.4
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Non-ECC
Yes
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Maximum internal memory
192 GB
Unbuffered memory
Yes
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Internal I/O
Front panel connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Parallel connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
Microphone in
Yes
Headphone outputs
1
HDMI version
1.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC897
Expansion slots
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
6.4
System Management BIOS (SMBIOS) version
3.5
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Weight & dimensions
Width
243.8 mm
Depth
243.8 mm
Packaging content
Cables included
SATA
Other features
PCI Express x1 (Gen 4.x) slots
2
MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX
