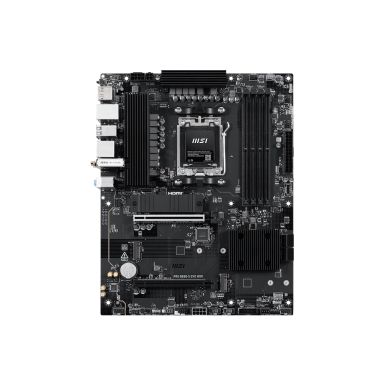

MSI PRO B850-S EVO WIFI motherboard AMD B850 Socket AM5 ATX

Number of M.2 (M) slots

3

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Total number of SATA connectors

4

Front panel connector

Yes

Audio connector

Yes

Supported storage drive interfaces

M.2, SATA

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

Power fan connector

Yes

Number of SATA connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of COM connectors

1

Front panel audio connector

Yes

CPU fan connector

Yes

Chassis intrusion connector

Yes

RGB LED pin header

Yes

Number of CPU fan connectors

1

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Parallel processing technology support

Not supported

On-board graphics card

No

HDMI version

2.1

Motherboard form factor

ATX

Component for

PC

Total number of SATA connectors

4

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

RAID levels

0, 1, 10

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio connector

Yes

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

8200,5600,4800 MHz

Maximum internal memory

256 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA

RAID levels

0, 1, 10

Number of storage drives supported

7

RAID support

Yes

Parallel processing technology support

Not supported

On-board graphics card

No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPort version

1.4

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Power source type

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio chip

Realtek ALC897

Product colour

Black

Number of M.2 (M) slots

3

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x4 (Gen 4.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

BIOS type

UEFI AMI

BIOS memory size

512 Mbit

ACPI version

6.5

System Management BIOS (SMBIOS) version

3.7

Power source type

ATX

Width

243.8 mm

Depth

304.8 mm

Cables included

SATA

Screws included

Yes

Antenna included

Yes
