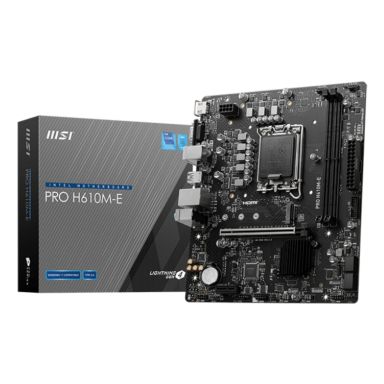

MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
In Stock
|
$81.58
$97.90 (Inc. VAT)
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
Supported processor sockets
LGA 1700
HDMI version
1.4
Cooling type
Active
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel Pentium G
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
5600 MHz
Supported memory module capacities
4GB, 8GB, 16GB, 32GB
Maximum internal memory
96 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
RAID support
Yes
Internal I/O
Thunderbolt headers
2
Audio connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
Number of COM connectors
2
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
2
HDMI version
1.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
Supported processor sockets
LGA 1700
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
6.4
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10, Windows 11
Drivers included
Yes
Weight & dimensions
Width
200 mm
Depth
236.2 mm
Packaging content
Drivers included
Yes
Cables included
SATA
MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
