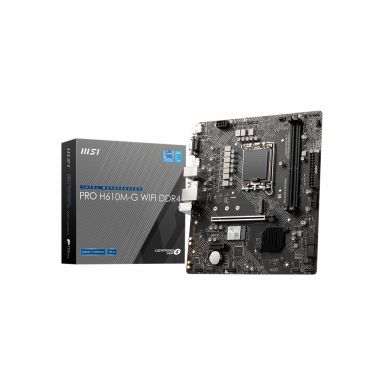

MSI PRO H610M-G WIFI DDR4 motherboard Intel H610 LGA 1700 micro ATX
In Stock
|
Call For Price (0808 189 1246)
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
Supported processor sockets
LGA 1700
Parallel processing technology support
Not supported
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
SSD
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
2133,2666,2933,3200 MHz
Maximum internal memory
64 GB
ECC Ñompatibility
Non-ECC
Storage controllers
Supported storage drive types
SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
DirectX version
12.0
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet interface type
Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
4.2
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Features
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC897
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Video
DirectX version
12.0
Software
Windows operating systems supported
Windows 10, Windows 11
Drivers included
Yes
Weight & dimensions
Height
65 mm
Weight
764 g
Width
244 mm
Depth
211 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Height
65 mm
Weight
764 g
MSI PRO H610M-G WIFI DDR4 motherboard Intel H610 LGA 1700 micro ATX
| Length | 21.1 cm |
| Width | 24.4 cm |
| Height | 6.5 cm |
| Weight | 0.76 kgs |
