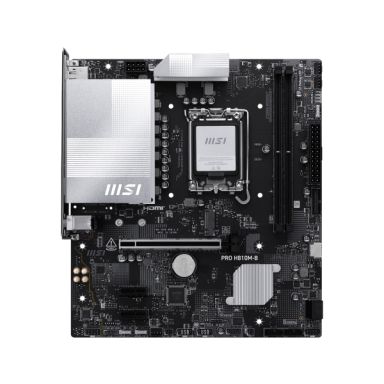

MSI PRO H810M-B motherboard Intel H810 LGA 1851 (Socket V1) micro ATX
In Stock
|
£86.75
£104.10 (Inc. VAT)
get it next day (UK Mainland Orders)
Internal I/O
Number of M.2 (M) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
3
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
4
TPM connector
Yes
Power fan connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
2
Front panel audio connector
Yes
CPU fan connector
Yes
CD/AUX audio in
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
1
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H810
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel H810
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
2
Supported memory types
DDR5-SDRAM
Supported memory clock speeds
4800,6400 MHz
Maximum internal memory
128 GB
ECC Ñompatibility
Non-ECC
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
USB 2.0 ports quantity
4
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel H810
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC897
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 slots
2
PCI Express x16 (Gen 5.x) slots
1
Software
Windows operating systems supported
Windows 11
Weight & dimensions
Width
220 mm
Depth
243.8 mm
Packaging content
Cables included
SATA
MSI PRO H810M-B motherboard Intel H810 LGA 1851 (Socket V1) micro ATX
| Weight | 1.00 kgs |
