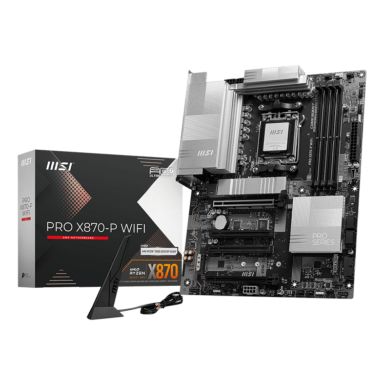

MSI PRO X870-P WIFI motherboard AMD X870 Socket AM5 ATX
In Stock
|
Call For Price (0808 189 1246)
Internal I/O
Number of M.2 (M) slots
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Total number of SATA connectors
4
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
mSATA ports quantity
0
Number of SATA connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD X870
Supported processor sockets
Socket AM5
PC health monitoring
CPU, Fan, Temperature, Voltage
On-board graphics card
No
Motherboard form factor
ATX
Component for
PC
Total number of SATA connectors
4
Maximum internal memory supported by processor
256 GB
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
7
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD X870
RAID levels
0, 1
Supported processor sockets
Socket AM5
PC health monitoring
CPU, Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Maximum internal memory supported by processor
256 GB
Compatible processor series
AMD Ryzenâ„¢ 7
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
4800,5600,8200 MHz
Maximum internal memory
256 GB
Supported memory clock speed (max)
8200 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
7
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1
Number of storage drives supported
4
RAID support
Yes
Graphics
On-board graphics card
No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
0
S/PDIF out port
Yes
Microphone in
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Ethernet interface type
5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD X870
Supported processor sockets
Socket AM5
PC health monitoring
CPU, Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Product colour
Black
Expansion slots
Number of M.2 (M) slots
3
PCI Express x16 slots
4
Software
Windows operating systems supported
Windows 11 x64
Weight & dimensions
Width
243.8 mm
Depth
304.8 mm
Other features
mSATA ports quantity
0
MSI PRO X870-P WIFI motherboard AMD X870 Socket AM5 ATX
| Weight | 1.00 kgs |
