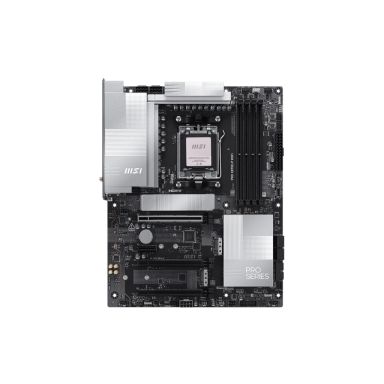

MSI PRO X870E-P WIFI motherboard AMD X870E Socket AM5 ATX

Number of M.2 (M) slots

3

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Total number of SATA connectors

4

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

6

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

mSATA ports quantity

0

TPM connector

Yes

Number of SATA connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

Supported processor sockets

Socket AM5

PC health monitoring

CPU, Fan, Temperature, Voltage

On-board graphics card

No

HDMI version

2.1

Motherboard form factor

ATX

Component for

PC

Total number of SATA connectors

4

Audio output channels

7.1 channels

Number of HDDs supported

7

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

RAID levels

0, 1

Supported processor sockets

Socket AM5

PC health monitoring

CPU, Fan, Temperature, Voltage

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

4800,5600,8200 MHz

Maximum internal memory

256 GB

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Number of HDDs supported

7

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1

Number of storage drives supported

4

RAID support

Yes

On-board graphics card

No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

1.4

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

2

USB4 Gen 3x2 ports quantity

1

USB4 Gen 2x2 ports quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Ethernet interface type

5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

Supported processor sockets

Socket AM5

PC health monitoring

CPU, Fan, Temperature, Voltage

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Product colour

Black

Number of M.2 (M) slots

3

PCI Express x16 slots

3

PCI Express x1 slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2580

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Windows operating systems supported

Windows 11 x64

Width

243.8 mm

Depth

304.8 mm

mSATA ports quantity

0
