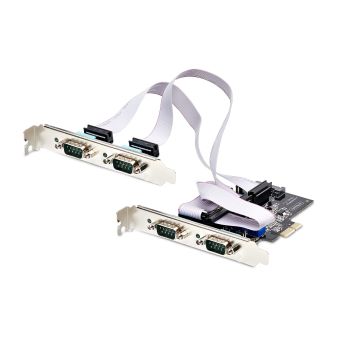

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection
In Stock
|
£137.50
£165.00 (Inc. VAT)
get it next day (UK Mainland Orders)
StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection
Write Your Own Review
Ports & interfaces
Internal
Yes
Output interface
Serial
Serial interface type
RS-232/422/485
Serial ports quantity
4
Host interface
PCIe
Technical details
Chipset
ASIX - AX99100
FIFO (First In, First Out)
256 B
Cable length
0.3 m
Sustainability compliance
Yes
Sustainability certificates
RoHS, Trade Agreements Act (TAA)
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Performance
Stop bits
1, 1.5, 2
Data bits
5, 6, 8, 9
Baud rate
921.6 Kbit/s
Chipset
ASIX - AX99100
FIFO (First In, First Out)
256 B
Flow control support
Yes
Product colour
Black
Colour
Product colour
Black
Design
Internal
Yes
Product colour
Black
LED indicators
Activity
Features
Stop bits
1, 1.5, 2
Data bits
5, 6, 8, 9
Baud rate
921.6 Kbit/s
Chipset
ASIX - AX99100
FIFO (First In, First Out)
256 B
Flow control support
Yes
Parity bit
Even, Mark, No, Odd, Space
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 80 °C
Operating relative humidity (H-H)
20 - 80%
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2016, Windows Server 2019, Windows Server 2022
Weight & dimensions
Width
109 mm
Depth
121 mm
Height
16 mm
Weight
60 g
Package width
144 mm
Package depth
207 mm
Package height
38 mm
Package weight
273.2 g
Packaging data
Mounting brackets included
Yes
Package width
144 mm
Package depth
207 mm
Package height
38 mm
Package weight
273.2 g
Cables included
Ribbon cable
User guide
Yes
Logistics data
Products per master (outer) case
50 pc(s)
Master (outer) case width
685 mm
Master (outer) case length
345 mm
Master (outer) case height
306 mm
Other features
Cable length
0.3 m
Electrostatic Discharge (ESD) protection
15 kV
Chipset
ASIX - AX99100
Flow control support
Yes
Packaging content
Mounting brackets included
Yes
Cables included
Ribbon cable
User guide
Yes
| Length | 20.7 cm |
| Width | 14.4 cm |
| Height | 3.8 cm |
| Weight | 0.23 kgs |
