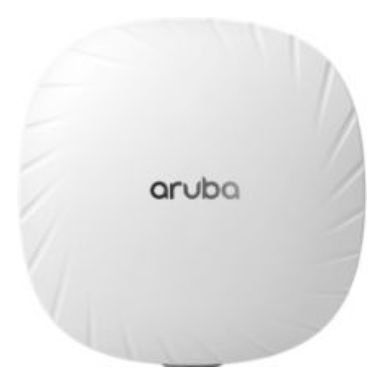

HPE Aruba AP-515 (EG) - Campus - wireless access point - Bluetooth 5.0, 802.11ax - Bluetooth, Wi-Fi - Dual Band - in-ceiling
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
10010002500 Mbit/s
Maximum data transfer rate
5375 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Spread spectrum method
DSSSOFDM
Ethernet LAN data rates
10010002500 Mbit/s
Maximum data transfer rate
5375 Mbit/s
MIMO
Yes
Network
Spread spectrum method
DSSSOFDM
Security
Cable lock slot
Yes
Security algorithms
WMMWPAWPA2
Features
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Spread spectrum method
DSSSOFDM
Ethernet LAN data rates
10010002500 Mbit/s
Maximum data transfer rate
5375 Mbit/s
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
575 Mbit/s
Maximum data transfer rate (5 GHz)
4800 Mbit/s
Ports & interfaces
USB connector type
USB Type-A
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Power
Power consumption (typical)
16 W
Power over Ethernet (PoE)
Yes
Design
Placement
Ceiling
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
7.5 dBi
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 93%
Weight & dimensions
Width
7.87" (200 mm)
Depth
7.87" (200 mm)
Weight
28.6 oz (810 g)
Height
1.81" (46 mm)
HPE Aruba AP-515 (EG) - Campus - wireless access point - Bluetooth 5.0, 802.11ax - Bluetooth, Wi-Fi - Dual Band - in-ceiling
| Length | 9.05 cm |
| Width | 8.7 cm |
| Height | 2.75 cm |
| Weight | 1.000000 kgs |
