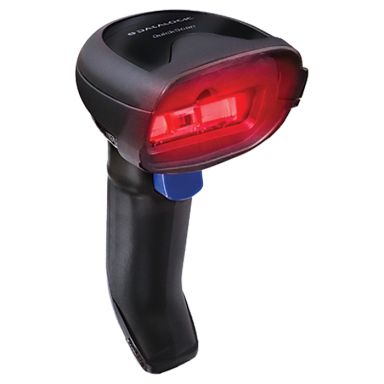

Datalogic QD2220-BK barcode reader Handheld bar code reader 1D LED Black

Type

Handheld bar code reader

Linear (1D) barcodes supported

AIM-128, AusPost, CPC Binary, China Post, Codabar, Codabar 125, Code 11, Code 128, Code 128A, Code 128B, Code 128C, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 3 of 9, Code 32, Code 39, Deutsche12, Discrete 2 of 5, EAN-13, GS1 Composite, GS1 DataBar, ISSN, Industrial 25, Intelligent Mail, POSTNET, Pharmacode, Plessey, PosiCode, PostBar, RM4SCC / KIX, S-Code, Standard 2 of 5, Standard 25, TCL39, Telepen, Trioptic, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1

Yaw reading angle

Wavelength

617 nm

Tilt reading angle

Sensor type

LED

Scanner type

1D

Read rate (max)

400 reads/s

Pitch reading angle

Light levels (direct sunlight)

0 - 120000 lx

Connectivity technology

Wired

LED indicators

Yes

Product colour

Black

Buzzer

Yes

Light levels (direct sunlight)

0 - 120000 lx

Type

Handheld bar code reader

LED indicators

Yes

Product colour

Black

Power consumption

165 mA

Power source type

RS-232, USB

Input voltage

5 V

Width

67 mm

Depth

107 mm

Height

156 mm

Weight

123 g

Type

Handheld bar code reader

LED indicators

Yes

Product colour

Black

Buzzer

Yes

Light levels (direct sunlight)

0 - 120000 lx
