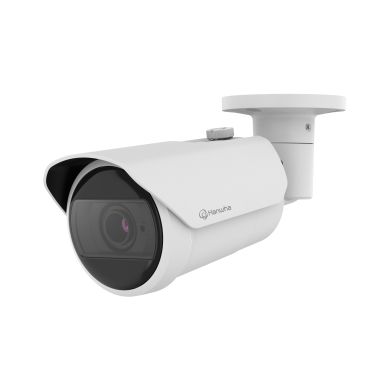

Hanwha QNO-C8083R security camera Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall

PTZ modes

Digital PTZ

Type

IP security camera

Connectivity technology

Wired

Placement supported

Indoor & outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Dynamic range

120 dB

IK code

IK10

Form factor

Bullet

Product colour

White

Mounting type

Ceiling/wall

International Protection (IP) code

IP66

Housing material

Aluminium

White balance

ATW, AWC, Indoor, Manual, Outdoor

Camera shutter speed

1/5~1/12,000 s

Lens viewing angle, horizontal

Lens viewing angle, vertical

Lens viewing angle, diagonal

Sensor type

CMOS

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Maximum aperture number

3.1

Recognize distance (wide)

8.5 m

Recognize distance (tele)

37.4 m

Observe distance (wide)

17.2 m

Observe distance (tele)

75.4 m

Identify distance (wide)

4.3 m

Identify distance (tele)

18.7 m

Detect distance (wide)

42.7 m

Detect distance (tele)

186.9 m

Closest focusing distance

1.2 m

Focal length range

3.2 - 10.2 mm

Night vision

Yes

Night vision distance

30 m

LED type

IR

Noise reduction

Yes

Privacy masking

Yes

Back Light Compensation (BLC)

Yes

Noise reduction technology

WiseNR ?

Video compression formats

H.264, H.265, M-JPEG

Maximum resolution

2592 x 1944 pixels

Supported graphics resolutions

320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2592 x 1944

Frame rate

30 fps

Total megapixels

5 MP

Voice codecs

G.711ulaw, G.726

Ethernet interface type

Fast Ethernet

Streaming method

Multicast, Unicast

Ethernet LAN

Yes

Supported network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT

Maximum memory card size

256 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), SDHC, SDXC

Flash memory

1000 MB

RAM capacity

2000 MB

USB port

Yes

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Alert notification type

E-mail

Intelligent Video Surveillance (IVS) system features

Crossing line, Defocus, Heat map, Human detection, People counting, Vehicle detection

Video motion detection

Yes

Security algorithms

802.1x RADIUS, EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2

IP address filtering

Yes

HTTPS encryption

Yes

Active tampering alarm

Yes

Power source type

DC, PoE

Power consumption (Power over Ethernet (PoE))

12 W

DC output voltage

12

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Length

245.8 mm

Diameter

9.34 cm

Weight

930 g

Number of cameras

1

Video compression formats

H.264, H.265, M-JPEG
