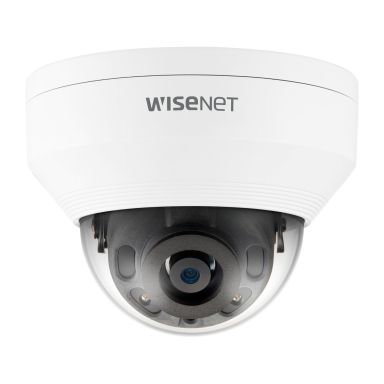

Hanwha QNV-7032R security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall
In Stock
|
Call For Price
(0808 189 1246)
Performance
Infrared (IR) cut-off filter
Yes
Type
IP security camera
Connectivity technology
Wired
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling/wall
International Protection (IP) code
IP66
Housing material
Aluminium
Camera
Tilt angle range
0 - 67°
Pan range
0 - 350°
White balance
ATW, AWC, Indoor, Manual, Outdoor
Angle of rotation
355°
Camera shutter type
Electronic
Camera shutter speed
1/5 - 1/12000 s
Camera pan control
Yes
Camera tilt control
Yes
Lens viewing angle, horizontal
49°
Lens viewing angle, vertical
27.6°
Lens viewing angle, diagonal
55.6°
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 3 mm (1 / 3")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
2
Detect distance
112.3 m
Observe distance
44.9 m
Recognize distance
22.5 m
Identify distance
11.2 m
Fixed focus
Yes
Fixed focal length
6 mm
Night vision
Night vision
Yes
Night vision distance
30 m
LED type
IR
Video
Noise reduction
Yes
Privacy masking
Yes
Flip & mirror
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Yes
Video compression formats
H.264, H.265, M-JPEG
Maximum resolution
2560 x 1440 pixels
Video streaming
Yes
Total megapixels
4 MP
Audio
Voice codecs
G.711, G.711ulaw, G.726
Built-in microphone
Yes
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x, IEEE 802.3af
Streaming method
Multicast, Unicast
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Storage
Maximum memory card size
128 GB
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory
512 MB
Flash memory
256 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Composite video out
1
Connectivity technology
Wired
Security
Intelligent Video Surveillance (IVS) system features
Defocus
Video motion detection
Yes
IP address filtering
Yes
Anti-flicker
Yes
Power
Power source type
DC, PoE
Power consumption (max)
6.5 W
Power consumption (Power over Ethernet (PoE))
8.1 W
DC output voltage
12
Operational conditions
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Height
91.7 mm
Diameter
12 cm
Weight
510 g
Packaging content
Number of cameras
1
Other features
Video compression formats
H.264, H.265, M-JPEG
Hanwha QNV-7032R security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall
