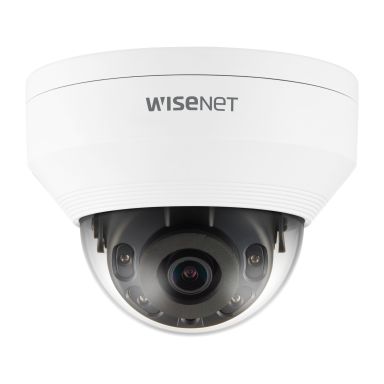

Hanwha QNV-8010R security camera Dome IP security camera Outdoor 2592 x 1944 pixels Ceiling

Languages support

Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish

Type

IP security camera

Connectivity technology

Wired

Placement supported

Outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

IK code

IK10

Form factor

Dome

Product colour

White

Mounting type

Ceiling

Protection features

Vandal proof

LED indicators

Yes

International Protection (IP) code

IP66

Housing material

Aluminium

Adjustment shutter speed

Manual

Minimum illumination

0.15 lx

Tilt angle range

0 - 67°

Pan range

0 - 350°

White balance

ATW, AWC, Indoor, Manual, Outdoor

Camera shutter type

Electronic

Lens viewing angle, horizontal

104.7°

Lens viewing angle, vertical

76.5°

Lens viewing angle, diagonal

136°

Progressive scan

Yes

Number of effective pixels (H x V)

2592 x 1944 pixels

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Maximum aperture number

2

Fixed focal length

2.8 mm

Night vision

Yes

Night vision distance

20 m

LED type

IR

Noise reduction

Yes

Privacy masking

Yes

Flip & mirror

Yes

Gain control type

Manual

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Back Light Compensation (BLC)

Yes

Video compression formats

H.264, H.265, M-JPEG

Maximum resolution

2592 x 1944 pixels

Supported graphics resolutions

640 x 360, 640 x 480 (VGA), 720 x 480, 768 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944

Video streaming

Yes

Total megapixels

5 MP

Bluetooth

No

Ethernet interface type

10 Gigabit Ethernet, 100 Gigabit Ethernet

Networking standards

IEEE 802.1x

Quality of Service (QoS) support

Yes

Number of users

6 user(s)

Streaming method

Multicast, Unicast

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP

Maximum memory card size

128 GB

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Alert notification type

E-mail

Video motion detection

Yes

IP address filtering

Yes

Active tampering alarm

Yes

Power source type

PoE

Power consumption (max)

7.5 W

Power consumption (typical)

5.8 W

Operating temperature (T-T)

-30 - 55 °C

Storage temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Height

91.7 mm

Diameter

12 cm

Weight

510 g

Number of cameras

1

Video compression formats

H.264, H.265, M-JPEG
