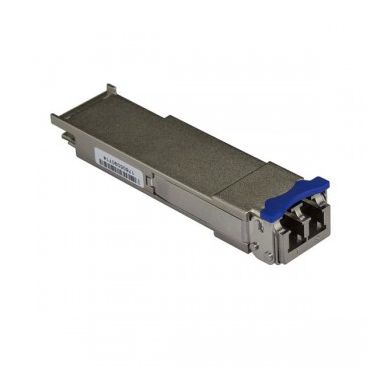

StarTech.com MSA Compliant SFP+ Transceiver Module - 40GBASE-LR4
In Stock
|
Call For Price
(0808 189 1246)
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3ba
Maximum data transfer rate
40000 Mbit/s
Interface type
QSFP+
Technical details
Package width
92 mm
Package height
32 mm
Hot-Plug support
Yes
Maximum transfer distance
10000 m
Duplex system
Full
Sustainability certificates
RoHS
Performance
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Mean time between failures (MTBF)
1489426 h
SFP transceiver type
Fiber optic
Tx wavelength (min)
1270 nm
Tx wavelength (max)
1330 nm
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Networking standards
IEEE 802.3ba
Maximum transfer distance
10000 m
Duplex system
Full
Maximum data transfer rate
40000 Mbit/s
Interface type
QSFP+
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
SFP transceiver standard
LR4
Features
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Certification
CE- FCC- UR- REACH
Mean time between failures (MTBF)
1489426 h
Power
Power consumption (typical)
2.5 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
18.4 mm
Depth
72 mm
Height
13 mm
Weight
40 g
