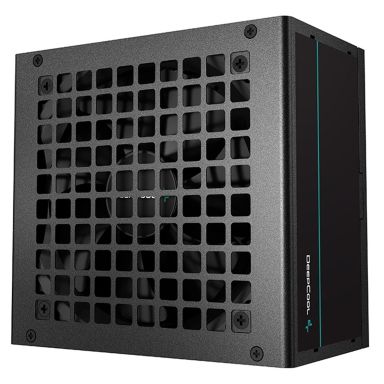

DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection
In Stock
|
£23.06
£27.67 (Inc. VAT)
get it next day (UK Mainland Orders)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS
Purpose
PC/Server
ATX version
2.4
Mean time between failures (MTBF)
100000 h
Design
80 PLUS certification
80 PLUS
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Cooling type
Active
Power
Total power
400 W
AC input voltage
220 - 240 V
AC input frequency
50 Hz
Combined power (+3.3V)
100 W
Combined power (+12V)
384 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
15 A
Max output current (+12V)
32 A
Max output current (+5V)
15 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over power, Over voltage, Short circuit, Under voltage
Hold time
16 ms
Efficiency
85%
Ports & interfaces
Motherboard power cable length
55 cm
SATA power cable length
450,600,750,900 mm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
Peripheral (Molex) power connectors (4-pin)
0
PCI Express power connectors (6+2 pin)
2
Cabling type
Non-Modular
EPS power connector (4+4 pin)
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Packaging content
Cables included
AC
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Packaging data
Cables included
AC
Package type
Box
Certificates
80 PLUS certification
80 PLUS
DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection
| Length | 55 cm |
| Width | 15 cm |
| Height | 8.6 cm |
| Weight | 1.00 kgs |
