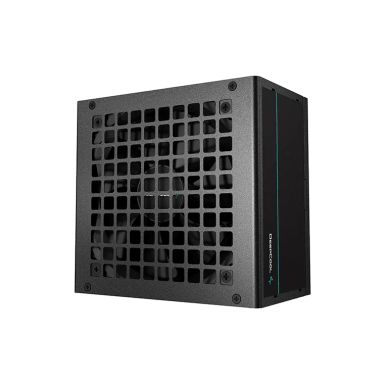

DeepCool PF600 power supply unit 600 W 20+4 pin ATX ATX Black
In Stock
|
$36.82
$44.18 (Inc. VAT)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS White
Purpose
PC
ATX version
2.4
Mean time between failures (MTBF)
100000 h
Bearing technology
HYB
Supported motherboard form factors
ATX
Harmonized System (HS) code
84733020
Design
80 PLUS certification
80 PLUS White
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Power
Total power
600 W
AC input voltage
200 - 240 V
AC input frequency
50 Hz
Input current
4.5 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
576 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
15 A
Max output current (+12V)
48 A
Max output current (+5V)
15 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over power, Over voltage, Short circuit, Under voltage
Hold time
16 ms
Efficiency
85%
Ports & interfaces
Motherboard power cable length
55 cm
SATA power cable length
450 mm
Peripheral (Molex) power cable length
150 mm
PCI Express power cable length
51 cm
CPU power cable length
61 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Non-Modular
EPS power connector (4+4 pin)
Yes
Operational conditions
Operating temperature (T-T)
0 - 30 °C
Packaging content
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included
Yes
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Packaging data
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Technical details
Sustainability certificates
ErP
Certificates
80 PLUS certification
80 PLUS White
Other features
Harmonized System (HS) code
84733020
DeepCool PF600 power supply unit 600 W 20+4 pin ATX ATX Black
