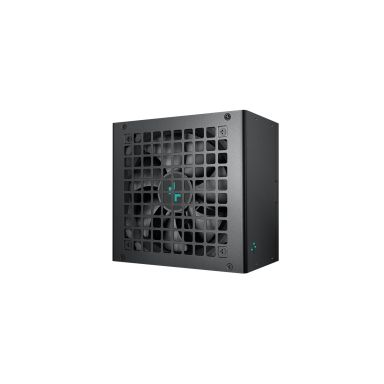

DeepCool PL750D 750W PSU, 120mm Silent Hydro Bearing Fan, 80 PLUS Bronze, Non Modular, UK Plug, Flat Black Cables, Stable with Low Noise Performance
In Stock
|
Call For Price (0808 189 1246)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Bronze
Purpose
PC
ATX version
3.0
Mean time between failures (MTBF)
100000 h
Country of origin
China
Certification
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Bearing technology
HYB
Design
80 PLUS certification
80 PLUS Bronze
Certification
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Country of origin
China
Cooling type
Active
Power
Total power
750 W
Power Good signal delay range
100 - 150 ms
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
10 - 5 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
750 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
No load operation, Over current, Over power, Over voltage, Overheating, Surge & inrush protection (SIP), Surge protection, Under voltage
Hold time
16 ms
Efficiency
85%
Ports & interfaces
Motherboard power cable length
55 cm
SATA power cable length
450,550,650,750 mm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
8
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
3
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Non-Modular
PCI Express power connectors (16-pin)
1
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Packaging data
Package type
Box
Technical details
Sustainability compliance
Yes
Sustainability certificates
ErP, Triman
Compliance certificates
RoHS, WEEE
Certificates
80 PLUS certification
80 PLUS Bronze
Certification
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
DeepCool PL750D 750W PSU, 120mm Silent Hydro Bearing Fan, 80 PLUS Bronze, Non Modular, UK Plug, Flat Black Cables, Stable with Low Noise Performance
| Length | 55 cm |
| Width | 15 cm |
| Height | 8.6 cm |
| Weight | 1.00 kgs |
