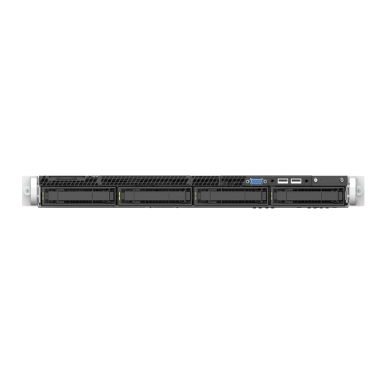

Intel R1304WFTYSR server barebone Intel® C624 LGA 3647 (Socket P) Rack (1U) Black, Silver

RAID levels

0- 1- 10

Hot-swap HDD bays

Yes

Compatible operating systems

Windows Server 2016*|VMware*|Ubuntu*|SUSE Linux Enterprise Server 11 SP4*

Built-in processor

No

Processor socket

LGA 3647 (Socket P)

Processor family

Intel® Xeon® Scalable

Number of processors supported

2

Motherboard chipset

Intel® C624

Compatible processor series

Intel® Xeon®

Product type

System

Product series

Intel® Server System R1000WF Family

Product codename

Wolf Pass

Rack-Friendly board

Yes

Rack rails

No

LED indicators

Yes

Heat sink included

Yes

Heat sink

(2) 1U Standard Heat Sink FXXCA78X108HS

Product colour

Black- Silver

Chassis type

Rack (1U)

Cooling type

Active

Supported memory types

DDR4-SDRAM

Number of DIMM slots

24

Maximum internal memory

7500 GB

Number of storage drives supported

6

Number of 3.5" bays

4

Supported storage drive interfaces

M.2

RAID levels

0- 1- 10

Hot-swap HDD bays

Yes

Storage drive sizes supported

2.5-3.5"

Supported storage drive types

HDD & SSD

SSD form factor

M.2

Intel Quiet System Technology (QST)

Yes

Intel Flex Memory Access

Yes

Intel Fast Memory Access

Yes

Intel Rapid Storage Technology enterprise

Yes

Internal I/O Expansion Module x8 Gen 3

1

Intel Server Customization Technology

Yes

Intel Quiet Thermal Technology

Yes

Intel Efficient Power Technology

Yes

Intel Build Assurance Technology

Yes

Intel Advanced Management Technology

Yes

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Intel Remote Management Module Support

Yes

Intel On-Demand Power Redundancy Technology

Yes

Intel Intelligent Power Node Manager

Yes

Compatible operating systems

Windows Server 2016*|VMware*|Ubuntu*|SUSE Linux Enterprise Server 11 SP4*

Ethernet LAN data rates

10-100-1000-10000 Mbit/s

Ethernet LAN

Yes

Ethernet interface type

10 Gigabit Ethernet- Gigabit Ethernet

USB ports quantity

5

Serial ports quantity

2

Number of SATA connectors

10

Ethernet LAN (RJ-45) ports

3

PCI Express x16 (Gen 3.x) slots

2

PCI Express x24 Riser Super slots

1

PCI Express OCuLink connectors (NVMe support)

4

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Compatible operating systems

Windows Server 2016*|VMware*|Ubuntu*|SUSE Linux Enterprise Server 11 SP4*

Harmonized System (HS) code

84714100

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G157815L2

Number of UPI links

2

Intel® Optane™ DC Persistent Memory technology

Yes

Intel Node Manager

Yes

Backplanes

Included

Intel® Optane™ DC Persistent Memory Supported

Yes

Product codename

Wolf Pass

USB ports quantity

5

Product type

System

PCI Express x16 (Gen 3.x) slots

2

Packaging content

1) 1U chassis with Quick Reference Label affixed to top cover (1) Intel® Server Board S2600WFTR (dual 10 GbE LAN) (2) Riser card assembly with 1 slot PCIe x16 riser card F1UL16RISER3 (4) 3.5” hot-swap drive bays with drive carriers and drive blanks. Includes: (1) 12 Gb SAS backplane FR1304S3HSBP (4) 3.5” hot swap drive tool less carriers FXX35HSCAR2 (1) Pre-installed standard control panel assembly o 260 mm front panel cable – iPN J25698-xxx (1) Pre-installed front I/O panel assembly o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx (1) 150 mm backplane I2C cable (1) 850 mm mini SAS HD cable AXXCBL850HDHRT (1) 350 mm backplane power cable (1) SATA optical drive power cable 300 mm (1) SATA optical drive bay mounting kit (1) Air duct (6) Dual rotor system fan FR1UFAN10PW

Number of storage drives supported

6

Number of 3.5" bays

4

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Connector for Intel I/O Expansion Module x8 Gen 3

1

Intel Server Customization Technology

Yes

Intel Quiet Thermal Technology

Yes

Intel Efficient Power Technology

Yes

Intel Build Assurance Technology

Yes

Intel Advanced Management Technology

Yes

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Rack-Friendly board

Yes

Rack rails

No

Intel Remote Management Module Support

Yes

Intel On-Demand Power Redundancy Technology

Yes

Intel Intelligent Power Node Manager

Yes

Heat sink included

Yes

Heat sink

(2) 1U Standard Heat Sink FXXCA78X108HS

CPU configuration (max)

2

Chassis type

Rack (1U)

Target market

Mainstream

Supported RAID configuration

SW RAID 0- 1- 10- optional 5

Supported board

Intel Server Board S2600WFTR

Status

Launched

Riser slot 2 number of lanes

24

Riser slot 1 number of lanes

24

Redundant fans

No

Optical drive supported

Yes

Launch date

Q2'19

Included riser slot 1 configuration(s)

1x PCIe Gen3 x16

Extended warranty available for purchase (select countries)

Yes

Expected discontinuance date

2023

Riser Slot 2 configuration

1x PCIe Gen3 x16

PCI Express x24 Riser Super slots

1

Harmonized System (HS) code

84714100

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G157815L2

Product colour

Black- Silver

LED indicators

Yes

Intel Quiet System Technology (QST)

Yes

Intel Flex Memory Access

Yes

Intel Fast Memory Access

Yes

Intel Rapid Storage Technology enterprise

Yes

Internal I/O Expansion Module x8 Gen 3

1

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Connector for Intel I/O Expansion Module x8 Gen 3

1

Intel Server Customization Technology

Yes

Intel Quiet Thermal Technology

Yes

Intel Efficient Power Technology

Yes

Intel Build Assurance Technology

Yes

Intel Advanced Management Technology

Yes

Intel Remote Management Module Support

Yes

Intel On-Demand Power Redundancy Technology

Yes

Intel Intelligent Power Node Manager

Yes

Intel® Optane™ Memory Ready

No

Number of main power supplies

1

Redundant power supply (RPS) support

Yes

Power supply type

AC

Power supply

1100 W

Number of power supply units

1

Thermal Design Power (TDP)

165 W

Width

430 mm

Height

43.6 mm

Depth

710 mm

Packaging content

1) 1U chassis with Quick Reference Label affixed to top cover (1) Intel® Server Board S2600WFTR (dual 10 GbE LAN) (2) Riser card assembly with 1 slot PCIe x16 riser card F1UL16RISER3 (4) 3.5” hot-swap drive bays with drive carriers and drive blanks. Includes: (1) 12 Gb SAS backplane FR1304S3HSBP (4) 3.5” hot swap drive tool less carriers FXX35HSCAR2 (1) Pre-installed standard control panel assembly o 260 mm front panel cable – iPN J25698-xxx (1) Pre-installed front I/O panel assembly o 620 mm USB 3.0 cable – iPN H76899-xxx o 400 mm video cable – iPN H62114-xxx (1) 150 mm backplane I2C cable (1) 850 mm mini SAS HD cable AXXCBL850HDHRT (1) 350 mm backplane power cable (1) SATA optical drive power cable 300 mm (1) SATA optical drive bay mounting kit (1) Air duct (6) Dual rotor system fan FR1UFAN10PW

Product type

System

On-board graphics card

No

CPU configuration (max)

2

Product series

Intel® Server System R1000WF Family

Product codename

Wolf Pass

Target market

Mainstream

Supported RAID configuration

SW RAID 0- 1- 10- optional 5

Supported board

Intel Server Board S2600WFTR

Status

Launched

Riser slot 2 number of lanes

24

Riser slot 1 number of lanes

24

Redundant fans

No

Optical drive supported

Yes

Launch date

Q2'19

Included riser slot 1 configuration(s)

1x PCIe Gen3 x16

Extended warranty available for purchase (select countries)

Yes

Expected discontinuance date

2023

Riser Slot 2 configuration

1x PCIe Gen3 x16
