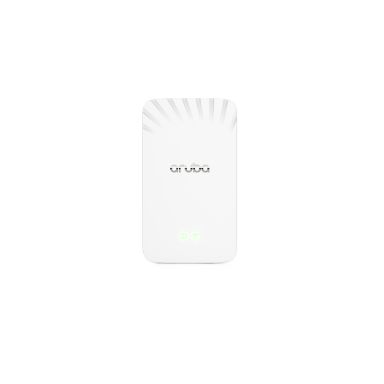

HPE Aruba AP-503H (US) Unified Hospitality - Wireless access point - 802.11ax - Wi-Fi - 2.4 GHz, 5 GHz - BTO
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
101001000 Mbit/s
Maximum data transfer rate
1487 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Spread spectrum method
DSSSOFDMOFDMA
Ethernet LAN data rates
101001000 Mbit/s
Maximum data transfer rate
1487 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Network
Spread spectrum method
DSSSOFDMOFDMA
Features
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Spread spectrum method
DSSSOFDMOFDMA
Ethernet LAN data rates
101001000 Mbit/s
Maximum data transfer rate
1487 Mbit/s
Bluetooth
Yes
Bluetooth version
5
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
287 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Security
Security algorithms
WPA2WPA3
Ports & interfaces
USB connector type
Micro-USB B
Ethernet LAN (RJ-45) ports
2
Power
Power consumption (typical)
10 W
Power over Ethernet (PoE)
Yes
Design
Placement
Table Wall
Product colour
White
Antenna
Antenna type
Internal
Antennas quantity
2
Antenna gain level (max)
5.6 dBi
Antenna direction type
Semi-directional
Antenna features
Integrated antenna
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 93%
Weight & dimensions
Width
3.39" (86 mm)
Depth
1.57" (40 mm)
Weight
10.2 oz (290 g)
Height
5.91" (150 mm)
HPE Aruba AP-503H (US) Unified Hospitality - Wireless access point - 802.11ax - Wi-Fi - 2.4 GHz, 5 GHz - BTO
| Length | 6.7 cm |
| Width | 4.5 cm |
| Height | 2.2 cm |
| Weight | 1.000000 kgs |
