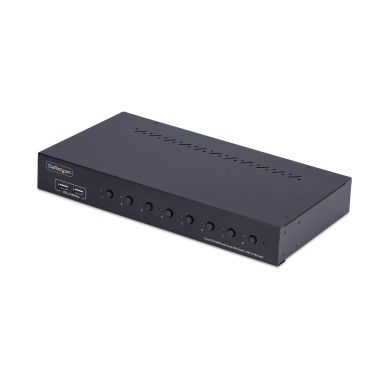

StarTech.com 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub
In Stock
|
£476.45
£571.74 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Console USB ports quantity
4
Console ports
3.5mm headphone, DisplayPort, USB A
Number of microphone inputs
8
DisplayPorts quantity
8
DisplayPort version
1.2
Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
1
DC-in jack
Yes
USB 2.0 Type-B ports quantity
8
Performance
Daisy chain
No
Data transfer rate (max)
0.48 Gbit/s
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Scan interval
10,20,30,40,50,60,70,80,90,100 s
Audio channels
2.0
Technical details
Product colour
Black
Rack mounting
Yes
Scan interval
10,20,30,40,50,60,70,80,90,100 s
Push button
Yes
On Screen Display (OSD)
No
LED indicators
Yes
Hot keys
Yes
IP control
No
Audio support
Yes
Compliance certificates
Federal Communications Commission (FCC), Trade Agreements Act (TAA)
Design
Mean time between failures (MTBF)
73003 h
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Rack capacity
1U
Housing material
Zinc
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Input current
1 A
Output current
3 A
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Output voltage
12 V
Power source
DC
Power consumption (typical)
36 W
Input voltage
100 - 240 V
Video
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Sustainability
Compliance certificates
Federal Communications Commission (FCC), Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Width
164 mm
Depth
300 mm
Height
44 mm
Weight
1.5 kg
Package width
435 mm
Package depth
288 mm
Package height
70 mm
Package weight
2.3 kg
Packaging data
Package width
435 mm
Package depth
288 mm
Package height
70 mm
Package weight
2.3 kg
Packaging content
Rack mount kit
Yes
Quick installation guide
Yes
Other features
IP control
No
Audio support
Yes
Push button
Yes
Hot keys
Yes
Logistics data
Master (outer) case width
466 mm
Master (outer) case length
390 mm
Master (outer) case height
316 mm
Products per master (outer) case
5 pc(s)
StarTech.com 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub
| Length | 28.8 cm |
| Width | 43.5 cm |
| Height | 7 cm |
| Weight | 2.30 kgs |
