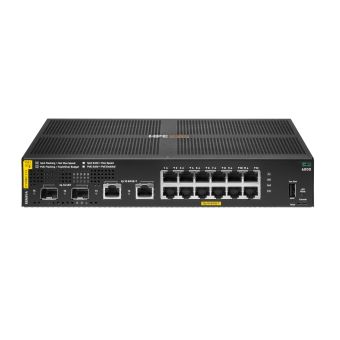

HPE Aruba R8N89A 6000 12G 139W Managed L3 Gigabit Power over Ethernet (PoE)
In Stock
|
get it next day (UK Mainland Orders)
HPE Aruba R8N89A 6000 12G 139W Managed L3 Gigabit Power over Ethernet (PoE)
Write Your Own Review
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Cloud-managed
Yes
Network
IGMP snooping
Yes
IPv6 FIB entries
128
IPv4 FIB entries
256
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
VLAN support
Yes
IPv4 & IPv6 features
IPv6 FIB entries
128
IPv4 FIB entries
256
Performance
Packet buffer memory
12.38 MB
Stackable
No
Processor frequency
1016 MHz
Memory type
DDR3-SDRAM
Internal memory
4096 MB
Flash memory
16384 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Stackable
No
Processor frequency
1016 MHz
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
12
Console port
USB
Data transmission
Throughput
23.8 Mpps
Latency (1 Gbps)
2.3 µs
Packet buffer memory
12.38 MB
MAC address table
8192 entries
Switching capacity
32 Gbit/s
Security
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Protocols
IPv6 FIB entries
128
IPv4 FIB entries
256
Memory
Packet buffer memory
12.38 MB
Memory type
DDR3-SDRAM
Internal memory
4096 MB
Flash memory
16384 MB
Design
Form factor
1U
Stackable
No
Rack mounting
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
139 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 90%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
15 - 95%
Weight & dimensions
Width
254 mm
Depth
255 mm
Height
44 mm
Weight
2.8 kg
| Length | 25.50 cm |
| Width | 25.40 cm |
| Height | 4.40 cm |
| Weight | 3.70 kgs |
