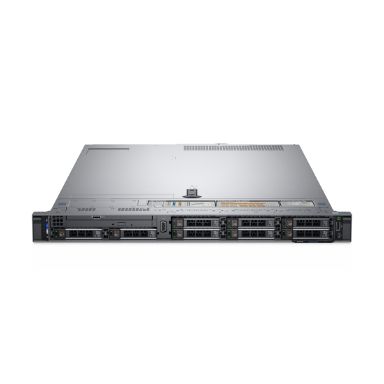

DELL PowerEdge R640 server 2.4 GHz 32 GB Rack (1U) Intel Xeon Silver 750 W DDR4-SDRAM
In Stock
|
Call For Price
(0808 189 1246)
Processor
Thermal Design Power (TDP)
100 W
Tcase
79 °C
Supported instruction sets
SSE4.2-AVX-AVX 2.0-AVX-512
Scalability
2S
Processor threads
24
Processor package size
76.0 x 56.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Cascade Lake
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2400 MHz
Maximum number of PCI Express lanes
48
Maximum internal memory supported by processor
1024 GB
Execute Disable Bit
Yes
Embedded options available
Yes
Processor cache
16.5 MB
Processor frequency
2.4 GHz
Processor boost frequency
3.5 GHz
Number of processors installed
1
Processor model
4214R
Processor socket
LGA 3647 (Socket P)
Processor cores
12
Processor manufacturer
Intel
Processor family
Intel Xeon Silver
Memory
Internal memory
32 GB
Memory layout (slots x size)
1 x 32 GB
Memory slots
24 x DIMM
Maximum internal memory
384 GB
Internal memory type
DDR4-SDRAM
Memory data transfer rate
3200 MT/s
Buffered memory type
Registered (buffered)
Memory ranking
2
Storage
Supported RAID controllers
PERC H730P 2GB
Total storage capacity
480 GB
Supported HDD sizes
2.5"
SSD interface
Serial ATA III
SSD capacity
480 GB
Optical drive type
No
Number of SSDs installed
1
Number of HDDs supported
8
Hot-Plug support
Yes
Terabytes written (TBW)
876
Drive writes per day (DWPD)
1
Graphics
On-board graphics adapter model
Not available
Network
LAN controller
Broadcom 5720-Broadcom 57412
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet- Gigabit Ethernet
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
4
Expansion slots
PCI Express slots version
3.0
Optical drive
Optical drive type
No
Design
Rack rails
Yes
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (1U)
Product colour
Black
Bezel
Yes
Performance
Compatible operating systems
- Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi
Remote administration
iDRAC9 Enterprise
Operating system installed
No
Software
Compatible operating systems
- Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi
Operating system installed
No
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Processor ARK ID
197100
Power
Number of main power supplies
1
Redundant power supply (RPS) support
No
Power supply
750 W
Power cable length
2 m
Power cable connector 1
C13 coupler
Power cable connector 2
C14 coupler
Power cable current
10 A
Operational conditions
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Supported HDD sizes
2.5"
Rack rails
Yes
Rack mounting
Yes
Hot-Plug support
Yes
Ethernet interface type
10 Gigabit Ethernet- Gigabit Ethernet
Chassis type
Rack (1U)
Management features
Remote administration
iDRAC9 Enterprise
Weight & dimensions
Package width
919 mm
Package depth
616 mm
Package height
292 mm
Package weight
21.6 kg
Height
42.8 mm
Packaging data
Package width
919 mm
Package depth
616 mm
Package height
292 mm
Package weight
21.6 kg
Packaging content
Cables included
AC
Other features
Data transfer rate
6 Gbit/s
Bytes per sector
512
DELL PowerEdge R640 server 2.4 GHz 32 GB Rack (1U) Intel Xeon Silver 750 W DDR4-SDRAM
