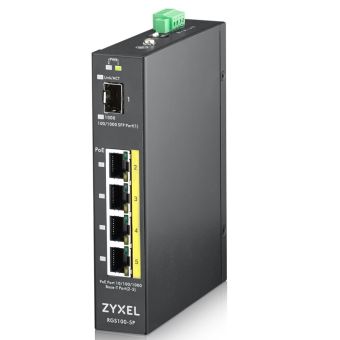

Zyxel RGS100-5P Unmanaged L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
In Stock
|
£294.56
£353.47 (Inc. VAT)
get it next day (UK Mainland Orders)
Zyxel RGS100-5P Unmanaged L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
Write Your Own Review
Management features
Multicast support
Yes
Switch type
Unmanaged
Switch layer
L2
Ports & interfaces
SFP module slots quantity
1
Basic switching RJ-45 Ethernet ports quantity
4
Fiber optic connector
SFP
Optical fiber
Fiber optic connector
SFP
Transmission distance (max)
40 km
Fiber ethernet cabling technology
1000BASE-X
Performance
Packet buffer memory
0.25 MB
Auto-negotiation
Yes
Plug and Play
Yes
Mean time between failures (MTBF)
568430 h
Power
Input voltage
12 - 58 V
Power consumption (max)
125 W
Power protection features
Short circuit
DC input voltage
12 - 58 V
Technical details
Product colour
Black
Mean time between failures (MTBF)
568430 h
Housing material
Metal
Rack mounting
Yes
Power over Ethernet (PoE)
Power protection features
Short circuit
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE)
Yes
Network
MAC address auto-learning supported
Yes
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
Jumbo frames
9000
Throughput
7.44 Mpps
Packet buffer memory
0.25 MB
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
0.25 MB
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Product colour
Black
Housing material
Metal
Rack mounting
Yes
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Heat dissipation
42625 BTU/h
Weight & dimensions
Width
29.1 mm
Depth
107.3 mm
Height
139 mm
Weight
500 g
| Weight | 0.68 kgs |
