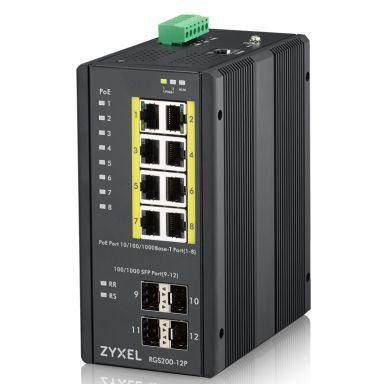

Zyxel RGS200-12P-ZZ0101F Managed L2 Gigabit Black Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC 2233 IF MIB- RFC1213 MIB II- RFC 1757 RMON 1/2/3/9- RFC1215- RFC1493- RFC 2674- LLDP-EXT-MED MIB
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber optic connector
SFP
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.1D-IEEE 802.1Q-IEEE 802.1ab-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3af-IEEE 802.3at-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
1024
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
No
Auto-negotiation
Yes
Virtual LAN features
Tagged VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
1024
Virtual LAN features
Tagged VLAN
Data transmission
Number of VLANs
1024
Jumbo frames
9000
Throughput
17.86 Mpps
Packet buffer memory
0.5 MB
MAC address table
8000 entries
Switching capacity
24 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Optical fiber
Fiber optic connector
SFP
Transmission distance (max)
40 km
Fiber ethernet cabling technology
1000BASE-X
Performance
Packet buffer memory
0.5 MB
Auto-negotiation
Yes
Buffer size
512 KB
Plug and Play
Yes
Mean time between failures (MTBF)
568430 h
Firmware upgradeable
Yes
Power
Input voltage
12 - 58 V
Power consumption (max)
255 W
DC input voltage
12 - 58 V
Technical details
Product colour
Black
Mean time between failures (MTBF)
568430 h
Housing material
Metal
Firmware upgradeable
Yes
Rack mounting
Yes
Security
Authentication
Guest VLAN- MAC-based authentication- Port-based authentication
SSH/SSL support
Yes
Security algorithms
802.1x RADIUS-HTTPS-SNMP-SSH-2
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
0.5 MB
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Product colour
Black
Housing material
Metal
Rack mounting
Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Heat dissipation
86955 BTU/h
Weight & dimensions
Width
77 mm
Depth
127.3 mm
Height
154 mm
Weight
1.45 kg
Packaging data
Wall mounting kit
Yes
Rack mount kit
Yes
Package width
133 mm
Package depth
192 mm
Package height
238 mm
Package weight
1.9 kg
Other features
Input voltage
12 - 58 V
Packaging content
Wall mounting kit
Yes
Rack mount kit
Yes
Zyxel RGS200-12P-ZZ0101F Managed L2 Gigabit Black Power over Ethernet (PoE)
| Length | 12.73 cm |
| Width | 7.70 cm |
| Height | 15.40 cm |
| Weight | 1.450000 kgs |
