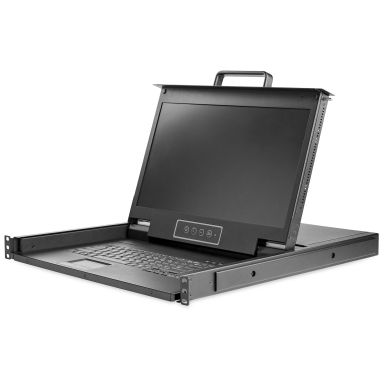

StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Display | |
|---|---|
| Display number of colours | 262144 colours |
| Display type | LCD |
| Display | TFT LCD |
| Display diagonal | 43.9 cm (17.3") |
| Viewing angle- vertical | 170° |
| Viewing angle- horizontal | 170° |
| Pixel pitch | 0.1989 x 0.1989 mm |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 300 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Aspect ratio | 16:9 |
| Colour depth | 6 bit |
| Technical details | |
| Daisy chain | No |
| LED indicators | Power- Status |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Operating relative humidity (H-H) | 10 - 80% |
| Mean time between failures (MTBF) | 50000 h |
| Material | Steel |
| Product colour | Black |
| Cables included | KVM |
| IP control | No |
| Audio support | No |
| Cable length | 1.8 m |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Video port type | VGA |
| Keyboard | |
| Built-in touchpad | Yes |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Power consumption (typical) | 13 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Certification | CE- FCC- PSE- UL- REACH |
| Weight & dimensions | |
| Mounting depth (min) | 51 cm |
| Mounting depth (max) | 85 cm |
| Weight | 13.7 kg |
| Width | 483 mm |
| Height | 565 mm |
| Depth | 43 mm |
| Packaging data | |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 185 mm |
| Package weight | 16 kg |
| Packaging content | |
| Screws included | Yes |
| Quick installation guide | Yes |
| Cables included | KVM |
| Number of screws | 8 |
| Number of cage nuts | 8 |
| Included power plug types | ANZ- EU- JP- NA- UK |
| Cage nuts included | Yes |
| Logistics data | |
| Master (outer) case width | 61.5 cm |
| Master (outer) case length | 76.5 cm |
| Master (outer) case height | 18.5 cm |
| Quantity per master (outer) case | 1 pc(s) |
StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
