0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
Performance | |
---|---|
Suitable location | Processor |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Minimum airflow (imperial) | 27.27 cfm |
Maximum airflow | 98.17 cfm |
Minimum air pressure | 0.21 mmH2O |
Maximum air pressure | 2.71 mmH2O |
Number of fans | 2 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Fan noise level (min) | 21 dB |
Fan noise level (max) | 38 dB |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 500 RPM |
Fan speed (max) | 1800 RPM |
Design | |
Fan connector | 4-pin |
Number of fans | 2 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Radiator material | Aluminium |
Water block material | Copper |
Technical details | |
Type | All-in-one liquid cooler |
Minimum airflow (imperial) | 27.27 cfm |
Maximum airflow | 98.17 cfm |
Minimum air pressure | 0.21 mmH2O |
Maximum air pressure | 2.71 mmH2O |
Number of fans | 2 fan(s) |
Products per pallet | 12 pc(s) |
Fan connector | 4-pin |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Fan power consumption | 4.56 W |
Pump voltage | 12 V |
Pump current | 300 mA |
Fan voltage | 12 V |
Fan current | 380 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 140 x 140 x 26 mm |
Package depth | 347 mm |
Package width | 157 mm |
Package height | 213 mm |
Package weight | 2.09 kg |
Radiator width | 31.5 cm |
Radiator depth | 14.3 cm |
Radiator height | 3 cm |
Tube length | 40 cm |
Waterblock width | 8 cm |
Waterblock depth | 8 cm |
Waterblock height | 5.5 cm |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 347 mm |
Package width | 157 mm |
Package height | 213 mm |
Package weight | 2.09 kg |
Indication | |
Illumination colour | Multi |
Other features | |
Country of origin | Taiwan |
Products per pallet | 12 pc(s) |
Harmonized System (HS) code | 84733080 |
Logistics data | |
Master (outer) case gross weight | 368 g |
Products per master (outer) case | 6 pc(s) |
Master (outer) case length | 490 mm |
Master (outer) case height | 460 mm |
Products per pallet | 12 pc(s) |
Master (outer) case tare weight | 13.7 kg |

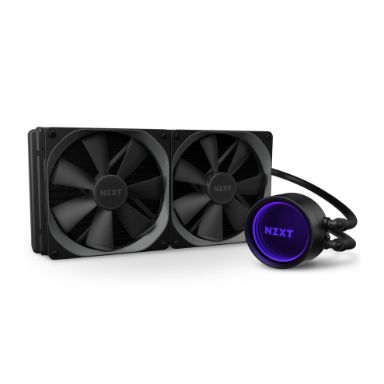

NZXT Kraken X63 Processor
Write Your Own Review
