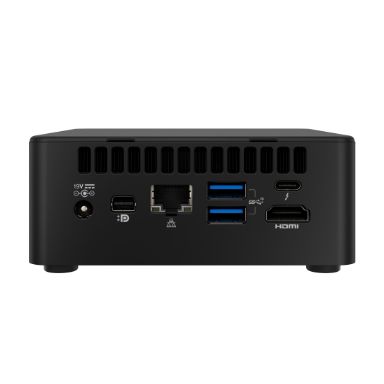

Intel NUC 11 Performance kit UCFF Black i7-1165G7

Motherboard form factor

UCFF

Number of processors supported

1

Thermal Design Power (TDP)

40 W

Built-in processor

Yes

Processor model

i7-1165G7

Processor boost frequency

4.7 GHz

Processor threads

8

Processor lithography

10 nm

Processor cores

4

Processor family

Intel® Core™ i7

Number of processors supported

1

Processor manufacturer

Intel

CPU configuration (max)

1

Memory bandwidth supported by processor (max)

51.2 GB/s

Processor cache

12 MB

Processor generation

11th gen Intel® Core™ i7

Memory slots type

SO-DIMM

Number of memory slots

2

Memory channels

Dual-channel

Memory bandwidth (max)

51.2 GB/s

ECC

No

Supported memory types

DDR4-SDRAM

Supported memory clock speeds

3200 MHz

Maximum internal memory

64 GB

Removable memory card slot

SDXC with UHS-II support

Number of DIMM slots

2

On-board graphics card

No

Graphics card family

Intel

Supported storage drive types

HDD & SSD

Storage drive sizes supported

M.2-2.5

Number of storage drives supported

2

SSD form factor

M.2

Number of displays supported

4

On-board graphics card

No

Graphics card family

Intel

On-board graphics card model

Intel® UHD Graphics

Discrete graphics card model

Not available

Intel® High Definition Audio (Intel® HD Audio)

Yes

Audio output channels

7.1 channels

Bluetooth

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

LAN controller

Intel I225-V

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

WLAN controller model

Intel Wi-Fi 6 AX201

DisplayPort version

1.4

Number of SATA III connectors

2

DC-in jack

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI version

2.0b

Mini DisplayPorts quantity

1

DisplayPorts quantity

1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

USB ports quantity

7

Thunderbolt 3 ports quantity

2

M.2 card slot (storage)

2280

PCI Express slots version

4.0

Motherboard form factor

UCFF

Product type

Mini PC barebone

LED indicators

Yes

Product colour

Black

Chassis type

UCFF

Status

Launched

Motherboard form factor

UCFF

Windows operating systems supported

Windows 11 x64- Windows 10 x64

Number of displays supported

4

Trusted Platform Module (TPM)

No

Number of processors supported

1

Compatible operating systems

Windows 10- 64-bit*

Audio output channels

7.1 channels

Commodity Classification Automated Tracking System (CCATS)

G157815L2

Harmonized System (HS) code

84713000

Export Control Classification Number (ECCN)

5A992C

Consumer infrared Rx sensor

Yes

Compatible operating systems

Windows 10- 64-bit*

Intel Stable Image Platform Program (SIPP)

No

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Trusted Execution Technology

No

Idle States

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel Rapid Storage Technology

Yes

Intel® High Definition Audio (Intel® HD Audio)

Yes

Embedded options available

No

Intel® Platform Trust Technology (Intel® PTT)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® vPro™ Platform Eligibility

No

Product colour

Black

DC input voltage

19 V

AC adapter output voltage

19 V

Power supply type

External AC adapter

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel Rapid Storage Technology

Yes

Intel® High Definition Audio (Intel® HD Audio)

Yes

Embedded options available

No

Trusted Platform Module (TPM)

No

Processor cores

4

Chassis type

UCFF

Number of SATA connectors

2

LED indicators

Yes

Number of displays supported

4

Harmonized System (HS) code

84713000

Storage temperature (T-T)

-20 - 60 °C

Operating temperature (T-T)

0 - 35 °C

Width

117 mm

Depth

112 mm

Height

51 mm

DC input voltage

19 V

Embedded options available

No

Number of SATA connectors

2

HDD size

2.5"

Chassis type

UCFF

Processor ARK ID

228582

Additional headers

CEC- USB3.1- USB2.0- FRONT_PANEL- RGB

Launch date

Q2'22
