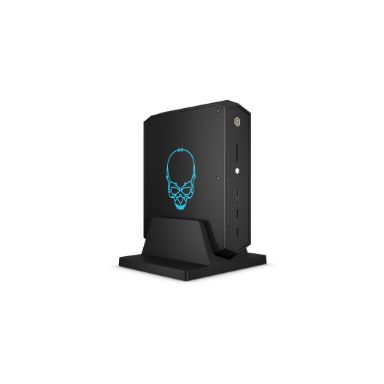

Intel NUC 12 Enthusiast Kit - NUC12SNKi72 SFF Black i7-12700H
Out of Stock
|
Call For Price (0808 189 1246)
Motherboard
Number of processors supported
1
Processor
Built-in processor
Yes
Processor model
i7-12700H
Processor boost frequency
4.7 GHz
Processor family
Intel® Core™ i7
Number of processors supported
1
Processor manufacturer
Intel
CPU configuration (max)
1
Memory bandwidth supported by processor (max)
51.2 GB/s
Processor cache
24 MB
Processor generation
12th gen Intel® Core™ i7
Memory
Memory voltage
1.2 V
Memory slots type
SO-DIMM
Number of memory slots
2
Memory channels
Dual-channel
Memory bandwidth (max)
51.2 GB/s
ECC
No
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
3200 MHz
Maximum internal memory
64 GB
Removable memory card slot
SD Express PCIe G3 NVMe UHS-I
Number of DIMM slots
2
Video
On-board graphics card
Yes
Graphics card family
Intel
Graphics card memory type
GDDR6
Storage
Supported storage drive types
SSD
Storage drive sizes supported
M.2
Storage drive interface
PCI Express- Serial ATA III
Number of storage drives supported
3
Compatible memory cards
SDXC
Card reader integrated
Yes
SSD form factor
M.2
NVMe
Yes
Graphics
Maximum resolution
5120 x 2880 pixels
Number of displays supported
4
On-board graphics card
Yes
Graphics card family
Intel
Graphics card memory type
GDDR6
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
Intel Arc A770M
Audio
Intel® High Definition Audio (Intel® HD Audio)
Yes
Audio output channels
7.1 channels
Built-in speaker(s)
No
Network
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth version
5.2
Bluetooth
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
LAN controller
Intel I225-LM
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Killer Wi-Fi 6E AX1690
Ports & interfaces
DisplayPort version
1.4
Combo headphone/mic port
Yes
Number of SATA III connectors
1
DC-in jack
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
HDMI version
2.1
DisplayPorts quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
M.2 card slot (wireless)
2230 (E-key)
USB ports quantity
10
M.2 card slot (storage)
3 2280
Thunderbolt 4 ports quantity
2
Expansion slots
PCI Express slots version
3.0- 4.0
Design
Product type
Mini PC barebone
Housing material
Metal- Plastic
Cable lock slot type
Kensington
Cable lock slot
Yes
ARK ID
196170
On/off switch
Yes
LED indicators
Yes
Cooling type
Active
Product colour
Black
Chassis type
SFF
Status
Launched
Performance
Maximum resolution
5120 x 2880 pixels
Windows operating systems supported
Windows 11 x64
Number of displays supported
4
Trusted Platform Module (TPM)
No
Number of processors supported
1
Compatible operating systems
Windows 10- 64-bit*
Audio output channels
7.1 channels
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Export Control Classification Number (ECCN)
5A992C
Consumer infrared Rx sensor
Yes
Software
Compatible operating systems
Windows 10- 64-bit*
Processor special features
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Trusted Execution Technology
Yes
Intel Flex Memory Access
Yes
Execute Disable Bit
Yes
Intel® Optane™ Memory Ready
Yes
Intel Rapid Storage Technology
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel® vPro™ Platform Eligibility
No
Colour
Product colour
Black
Technical details
Cable lock slot type
Kensington
Cable lock slot
Yes
Intel Rapid Storage Technology
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Trusted Platform Module (TPM)
No
Cooling type
Active
Chassis type
SFF
ARK ID
196170
Internal I/O
Number of SATA connectors
1
Indication
LED indicators
Yes
Management features
On/off switch
Yes
Features
Number of displays supported
4
Extended Life Program (XLP)
No
Power
AC adapter output voltage
19.5 V
Power supply type
External AC adapter
Power supply
330 W
Number of power supply units
1
Weight & dimensions
Width
230 mm
Depth
180 mm
Height
60 mm
Other features
Embedded options available
No
Number of SATA connectors
1
Chassis type
SFF
Launch date
Q3'22
Intel NUC 12 Enthusiast Kit - NUC12SNKi72 SFF Black i7-12700H
| Weight | 1.00 kgs |
