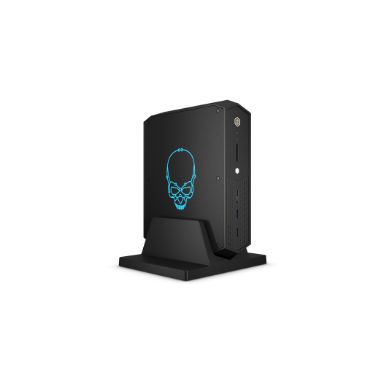

Intel NUC 12 Enthusiast Mini PC - NUC12SNKi72VA i7-12700H SFF Intel® Core™ i7 16 GB DDR4-SDRAM 10
Out of Stock
|
Call For Price (0808 189 1246)
Processor
Processor generation
12th gen Intel® Core™ i7
Memory types supported by processor
DDR4-SDRAM
Configurable TDP-down
35 W
Memory bandwidth supported by processor (max)
51.2 GB/s
Processor cache
24 MB
Processor model
i7-12700H
Processor manufacturer
Intel
Processor boost frequency
4.7 GHz
Processor threads
20
Processor cores
14
PCI Express slots version
4- 3.0
Processor family
Intel® Core™ i7
Memory
ECC
No
Memory layout (slots x size)
2 x 8 GB
Internal memory
16 GB
Maximum internal memory
64 GB
Memory slots
2x SO-DIMM
Internal memory type
DDR4-SDRAM
Memory clock speed
3200 MHz
Number of DIMM slots
2
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Memory bandwidth (max)
51.2 GB/s
Storage
Storage media
SSD
Number of storage drives installed
1
Number of storage drives supported
3
Optical drive type
No
SSD interface
PCI Express 4.0
SSD capacity
1000 GB
Number of SSDs installed
1
Card reader integrated
Yes
Compatible memory cards
SDXC
Total storage capacity
1000 GB
SSD form factor
M.2
Total SSDs capacity
1000 GB
NVMe
Yes
Graphics
Discrete graphics card
Yes
Discrete graphics card memory
16 GB
On-board graphics card family
Intel Iris Xe
On-board graphics card
No
Discrete graphics card model
Intel Arc A770M
Discrete graphics memory type
GDDR6
On-board graphics card model
Intel Iris Xe Graphics
Number of discrete graphics cards
1
Discrete GPU manufacturer
Intel
Optical drive
Optical drive type
No
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Bluetooth
Yes
Bluetooth version
5.2
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Ethernet LAN data rates
2500 Mbit/s
WLAN controller model
Killer Wi-Fi 6E AX1690
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Antenna type
2x2
WLAN controller manufacturer
Killer
LAN controller
Intel I225-LM
Ports & interfaces
Combo headphone/mic port
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
Total number of SATA connectors
1
Number of SATA III connectors
1
HDMI version
2.1
S/PDIF out port
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
DC-in jack
Yes
M.2 card slot (wireless)
2230 (E-key)
M.2 card slot (storage)
3 2280
DisplayPort version
1.4
Thunderbolt 4 ports quantity
2
Expansion slots
PCI Express slots version
4- 3.0
Technical details
Intel® High Definition Audio (Intel® HD Audio)
Yes
Cable lock slot type
Kensington
Product type
Mini PC barebone
Trusted Platform Module (TPM)
No
Product colour
Black
Chassis type
SFF
Cable lock slot
Yes
Audio output channels
7.1 channels
Design
Housing material
Metal- Plastic
Cable lock slot type
Kensington
Product colour
Black
Chassis type
SFF
Cable lock slot
Yes
Intel® vPro™ Platform Eligibility
No
Performance
Embedded options available
No
Number of displays supported
4
Product type
Mini PC barebone
Trusted Platform Module (TPM)
No
Built-in speaker(s)
No
Audio output channels
7.1 channels
Consumer infrared Rx sensor
Yes
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Removable memory card slot
SD Express PCIe G3 NVMe UHS-I
Status
Launched
Software
Operating system architecture
64-bit
Compatible operating systems
Windows 11 (64-bit)
Operating system installed
Windows 11 Home
Processor special features
Embedded options available
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Flex Memory Access
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
CPU configuration (max)
1
Intel Virtualization Technology (VT-x)
Yes
Intel Rapid Storage Technology
Yes
Processor ARK ID
231480
Intel® Optane™ Memory Ready
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel® vPro™ Platform Eligibility
No
Power
Power supply
330 W
DC input voltage
19.5 V
Operational conditions
Storage temperature (T-T)
-20 - 40 °C
Operating temperature (T-T)
0 - 35 °C
Weight & dimensions
Width
230 mm
Depth
180 mm
Height
60 mm
Packaging content
Cables included
AC
Display included
No
Logistics data
Harmonized System (HS) code
8471500150
Other features
Number of displays supported
4
USB ports quantity
10
Trusted Platform Module (TPM)
No
Number of SATA connectors
1
On-board graphics card
No
Processor manufacturer
Intel
Compatible operating systems
Windows 11 (64-bit)
Built-in speaker(s)
No
Consumer infrared Rx sensor
Yes
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Intel NUC 12 Enthusiast Mini PC - NUC12SNKi72VA i7-12700H SFF Intel® Core™ i7 16 GB DDR4-SDRAM 10
| Weight | 1.00 kgs |
