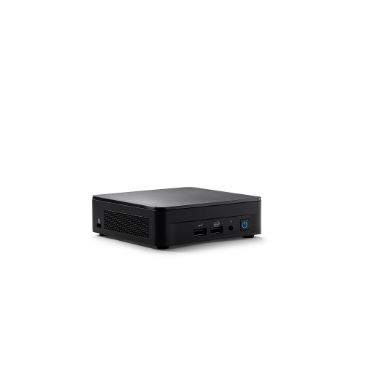

Intel NUC 12 Pro Kit NUC12WSKi3 UCFF Black i3-1220P

Motherboard form factor

UCFF

Number of processors supported

1

Thermal Design Power (TDP)

20 W

Built-in processor

Yes

Processor model

i3-1220P

Processor boost frequency

4.4 GHz

Processor threads

12

Processor cores

10

Processor family

Intel® Core™ i3

Number of processors supported

1

Processor manufacturer

Intel

CPU configuration (max)

1

Processor cache

12 MB

Processor generation

12th gen Intel® Core™ i3

Memory voltage

1.2 V

Memory slots type

SO-DIMM

Number of memory slots

2

Memory channels

Dual-channel

ECC

No

Supported memory types

DDR4-SDRAM

Supported memory clock speeds

3200 MHz

Maximum internal memory

64 GB

Number of DIMM slots

2

On-board graphics card

No

Graphics card family

Intel

Supported storage drive types

SSD

Storage drive sizes supported

M.2

Storage drive interface

M.2- PCI Express

Number of storage drives supported

2

Card reader integrated

No

SSD form factor

M.2

NVMe

Yes

Number of displays supported

4

On-board graphics card

No

Graphics card family

Intel

On-board graphics card model

Intel® UHD Graphics

Intel® High Definition Audio (Intel® HD Audio)

Yes

Audio output channels

7.1 channels

Built-in speaker(s)

No

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

LAN controller

Intel I225-V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

Serial port via internal header

No

Combo headphone/mic port

Yes

DC-in jack

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI version

2.1

DisplayPorts quantity

1

USB 2.0 ports quantity

1

HDMI ports quantity

2

Ethernet LAN (RJ-45) ports

1

M.2 card slot (wireless)

2230 (E-key) (E)

USB ports quantity

4

M.2 card slot (storage)

2280 NVMe (M); 2242 SATA (B)

Thunderbolt 4 ports quantity

2

PCI Express slots version

4.0

Motherboard form factor

UCFF

Product type

Mini PC barebone

Cable lock slot type

Kensington

Cable lock slot

Yes

ARK ID

121613

On/off switch

Yes

LED indicators

Yes

Cooling type

Active

Product colour

Black

Chassis type

UCFF

Status

Launched

Motherboard form factor

UCFF

Windows operating systems supported

Windows 10 IoT Enterprise- Windows 10 x64- Windows 11 x64

Linux operating systems supported

Yes

BIOS type

EEPROM

Number of displays supported

4

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Number of processors supported

1

Compatible operating systems

Windows 10 IoT Enterprise*|Linux*

Audio output channels

7.1 channels

Commodity Classification Automated Tracking System (CCATS)

G157815L2

Harmonized System (HS) code

8471500150

Export Control Classification Number (ECCN)

5A992C

Compatible operating systems

Windows 10 IoT Enterprise*|Linux*

Intel ME Firmware Version

16

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Flex Memory Access

Yes

Execute Disable Bit

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Optane™ Memory Ready

No

Intel® High Definition Audio (Intel® HD Audio)

Yes

Embedded options available

No

Intel® Platform Trust Technology (Intel® PTT)

Yes

Intel Virtualization Technology (VT-x)

Yes

Product colour

Black

DC input voltage

12 - 20 V

Power supply type

External AC adapter

Power supply

90 W

BIOS type

EEPROM

Intel® AES New Instructions (Intel® AES-NI)

Yes

Cable lock slot type

Kensington

Cable lock slot

Yes

Intel® High Definition Audio (Intel® HD Audio)

Yes

Embedded options available

No

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Processor cores

10

Cooling type

Active

Chassis type

UCFF

Sustainability certificates

China Energy Label (CEL)- ENERGY STAR- ErP- REACH- RoHS

ARK ID

121613

Number of SATA connectors

1

Power cord included

Yes

LED indicators

Yes

On/off switch

Yes

Number of displays supported

4

Harmonized System (HS) code

8471500150

Storage temperature (T-T)

-20 - 60 °C

Operating temperature (T-T)

0 - 40 °C

Width

117 mm

Depth

112 mm

Height

37 mm

Power cord included

Yes

DC input voltage

12 - 20 V

Embedded options available

No

Number of SATA connectors

1

Chassis type

UCFF

Additional headers

Front_panel (PWR- RST- 5V- 5Vsby- 3.3Vsby); Internal 2x2 power connector

Launch date

Q3'22
