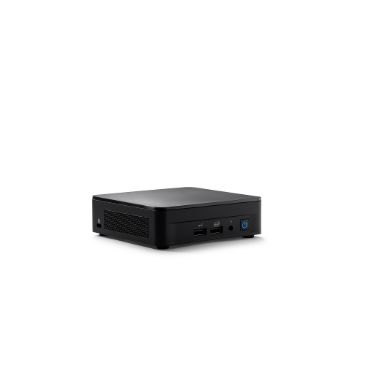

Intel NUC 12 Pro Kit NUC12WSKi5 UCFF Black i5-1240P
0 Reviews
| Add your review
In Stock
|
£419.44
£503.33 (Inc. VAT)
| Motherboard | |
|---|---|
| Motherboard form factor | UCFF |
| Number of processors supported | 1 |
| Processor | |
| Thermal Design Power (TDP) | 35 W |
| Built-in processor | Yes |
| Processor model | i5-1240P |
| Processor boost frequency | 4.4 GHz |
| Processor family | Intel® Core™ i5 |
| Number of processors supported | 1 |
| Processor manufacturer | Intel |
| CPU configuration (max) | 1 |
| Processor cache | 12 MB |
| Processor generation | 12th gen Intel® Core™ i5 |
| Memory | |
| Memory voltage | 1.2 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 3200 MHz |
| Maximum internal memory | 64 GB |
| Number of DIMM slots | 2 |
| Video | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | M.2 |
| Number of storage drives supported | 2 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Graphics | |
| Maximum resolution | 7680 x 4320 pixels |
| Number of displays supported | 4 |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | Not available |
| Audio | |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Audio output channels | 7.1 channels |
| Built-in speaker(s) | No |
| Network | |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I225-V |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ports & interfaces | |
| Serial port via internal header | No |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| M.2 card slot (wireless) | 2230 (E-key) (E) |
| USB ports quantity | 4 |
| M.2 card slot (storage) | 2280 NVMe (M); 2242 SATA (B) |
| Thunderbolt 4 ports quantity | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0- 4.0 |
| Design | |
| Motherboard form factor | UCFF |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| ARK ID | 121623 |
| On/off switch | Yes |
| LED indicators | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | UCFF |
| Status | Launched |
| Performance | |
| Motherboard form factor | UCFF |
| Maximum resolution | 7680 x 4320 pixels |
| Windows operating systems supported | Windows 10 IoT Enterprise- Windows 10 x64- Windows 11 x64 |
| Linux operating systems supported | Yes |
| Number of displays supported | 4 |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Number of processors supported | 1 |
| Compatible operating systems | Windows 11 Home- Windows 11 Pro- Windows 10 Home- Windows 10 IoT Enterprise- Windows 10 Pro- Red Hat Linux- Ubuntu 20.04 LTS |
| Audio output channels | 7.1 channels |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Harmonized System (HS) code | 8471500150 |
| Export Control Classification Number (ECCN) | 5A992C |
| Software | |
| Compatible operating systems | Windows 11 Home- Windows 11 Pro- Windows 10 Home- Windows 10 IoT Enterprise- Windows 10 Pro- Red Hat Linux- Ubuntu 20.04 LTS |
| Processor special features | |
| Intel ME Firmware Version | 16 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Flex Memory Access | Yes |
| Execute Disable Bit | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Colour | |
| Product colour | Black |
| Technical details | |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Cooling type | Active |
| Chassis type | UCFF |
| ARK ID | 121623 |
| Indication | |
| LED indicators | Yes |
| Management features | |
| On/off switch | Yes |
| Features | |
| Number of displays supported | 4 |
| Logistics data | |
| Harmonized System (HS) code | 8471500150 |
| Power | |
| Power supply type | External AC adapter |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 37 mm |
| Other features | |
| Embedded options available | No |
| Chassis type | UCFF |
| Additional headers | Front_panel (PWR- RST- 5V- 5Vsby- 3.3Vsby); Internal 2x2 power connector |
| Launch date | Q3'22 |
