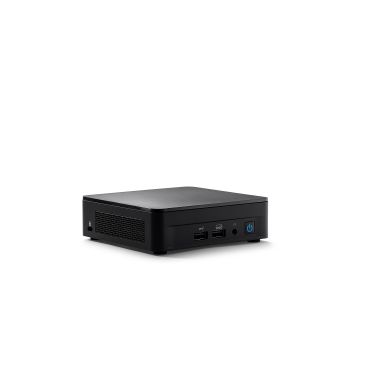

Intel NUC 12 Pro Kit NUC12WSKi7 UCFF Black i7-1260P
In Stock
|
Call For Price
(0808 189 1246)
Motherboard
Motherboard form factor
UCFF
Number of processors supported
1
Processor
Thermal Design Power (TDP)
35 W
Built-in processor
Yes
Processor model
i7-1260P
Processor boost frequency
4.7 GHz
Processor threads
16
Processor cores
12
Processor family
Intel® Core i7
Number of processors supported
1
Processor manufacturer
Intel
CPU configuration (max)
1
Processor cache
18 MB
Processor generation
12th gen Intel® Core i7
Memory
Memory voltage
1.2 V
Memory slots type
SO-DIMM
Number of memory slots
2
Memory channels
Dual-channel
ECC
No
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
3200 MHz
Maximum internal memory
64 GB
Number of DIMM slots
2
Video
On-board graphics card
No
Graphics card family
Intel
Storage
Supported storage drive types
SSD
Storage drive sizes supported
M.2
Storage drive interface
M.2, PCI Express
Number of storage drives supported
2
Card reader integrated
No
SSD form factor
M.2
NVMe
Yes
Graphics
Number of displays supported
4
On-board graphics card
No
Graphics card family
Intel
On-board graphics card model
Intel Iris Xe Graphics
Audio
Intel® High Definition Audio (Intel® HD Audio)
Yes
Audio output channels
7.1 channels
Built-in speaker(s)
No
Network
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Bluetooth
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
LAN controller
Intel I225-V
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Ports & interfaces
Serial port via internal header
No
Combo headphone/mic port
Yes
DC-in jack
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI version
2.1
DisplayPorts quantity
1
USB 2.0 ports quantity
1
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
M.2 card slot (wireless)
2230 (E-key) (E)
USB ports quantity
4
M.2 card slot (storage)
2280 NVMe (M); 2242 SATA (B)
Thunderbolt 4 ports quantity
2
Expansion slots
PCI Express slots version
4.0
Design
Motherboard form factor
UCFF
Product type
Mini PC barebone
Cable lock slot type
Kensington
Cable lock slot
Yes
ARK ID
121637
On/off switch
Yes
LED indicators
Yes
Cooling type
Active
Product colour
Black
Chassis type
UCFF
Status
Launched
Performance
Motherboard form factor
UCFF
Windows operating systems supported
Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64
Linux operating systems supported
Yes
BIOS type
EEPROM
Number of displays supported
4
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Compatible operating systems
Windows 10 IoT Enterprise*|Linux*
Audio output channels
7.1 channels
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Processor special features
Intel ME Firmware Version
16
Thermal Monitoring Technologies
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Trusted Execution Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Flex Memory Access
Yes
Execute Disable Bit
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Optane Memory Ready
No
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel Virtualization Technology (VT-x)
Yes
Colour
Product colour
Black
Power
DC input voltage
12 - 20 V
Power supply type
External AC adapter
Power supply
120 W
Technical details
BIOS type
EEPROM
Intel® AES New Instructions (Intel® AES-NI)
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Processor cores
12
Cooling type
Active
Chassis type
UCFF
Sustainability certificates
China Energy Label (CEL), ENERGY STAR, ErP
Compliance certificates
REACH, RoHS
ARK ID
121637
Internal I/O
Number of SATA connectors
1
Packaging data
Power cord included
Yes
Indication
LED indicators
Yes
Software
Windows operating systems supported
Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64
Linux operating systems supported
Yes
Compatible operating systems
Windows 10 IoT Enterprise*|Linux*
Management features
On/off switch
Yes
Features
Number of displays supported
4
Logistics data
Harmonized System (HS) code
8471500150
Sustainability
Sustainability certificates
China Energy Label (CEL), ENERGY STAR, ErP
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
117 mm
Depth
112 mm
Height
37 mm
Packaging content
Power cord included
Yes
Other features
DC input voltage
12 - 20 V
Embedded options available
No
Number of SATA connectors
1
Chassis type
UCFF
Additional headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Launch date
Q3'22
Intel NUC 12 Pro Kit NUC12WSKi7 UCFF Black i7-1260P
