Intel NUC 13 Pro Kit Nettop Black i7-1360P
In Stock
|
£508.26
£609.91 (Inc. VAT)
get it next day (UK Mainland Orders)

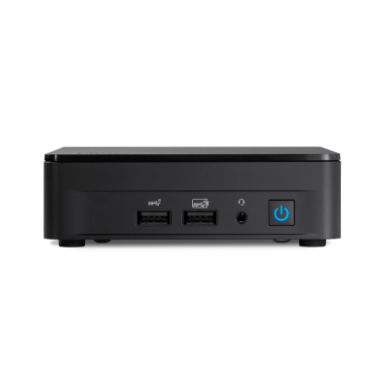

Intel NUC 13 Pro Kit Nettop Black i7-1360P
Write Your Own Review
Motherboard
Motherboard form factor
UCFF
Processor
Built-in processor
Yes
Processor model
i7-1360P
Processor boost frequency
5 GHz
Processor threads
16
Processor cores
12
Processor family
Intel® Core⢠i7
Processor manufacturer
Intel
Processor codename
Raptor Lake
CPU configuration (max)
1
Processor cache
18 MB
Performance cores
4
Efficient cores
8
Performance-core boost frequency
5 GHz
Efficient-core boost frequency
3.7 GHz
Processor generation
13th gen Intel® Core⢠i7
Memory
Memory voltage
1.2 V
Memory slots type
SO-DIMM
Number of memory slots
2
Memory channels
Dual-channel
ECC
No
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
3200 MHz
Maximum internal memory
64 GB
Non-ECC
Yes
Number of DIMM slots
2
Video
On-board graphics card
No
Graphics card family
Intel
Storage
Supported storage drive types
SSD
Storage drive sizes supported
M.2
Storage drive interface
PCI Express- Serial ATA
Number of storage drives supported
2
SSD form factor
M.2
NVMe
Yes
Graphics
Maximum resolution
7680 x 4320 pixels
Number of displays supported
4
On-board graphics card
No
Graphics card family
Intel
On-board graphics card model
Intel Iris Xe Graphics
Audio
Intel® High Definition Audio (Intel® HD Audio)
Yes
Built-in speaker(s)
No
Network
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Bluetooth
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
LAN controller
Intel I226-V
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Ports & interfaces
Serial port via internal header
No
Combo headphone/mic port
Yes
Number of SATA III connectors
1
DC-in jack
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI version
2.1
DisplayPorts quantity
1
USB 2.0 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
M.2 card slot (wireless)
2230 (E-key) (E)
USB ports quantity
4
M.2 card slot (storage)
2280 NVMe (M); 2242 SATA (B)
Thunderbolt 4 ports quantity
2
Expansion slots
PCI Express slots version
4.0
Number of M.2 (M) slots
1
Design
Motherboard form factor
UCFF
Product type
Mini PC barebone
ARK ID
233101
On/off switch
Yes
LED indicators
Yes
Cooling type
Active
Product colour
Black
Chassis type
Nettop
Product family
Intel NUC
Product codename
Arena Canyon
Status
Launched
Performance
Motherboard form factor
UCFF
Maximum resolution
7680 x 4320 pixels
Windows operating systems supported
Windows 10 IoT Enterprise- Windows 11 x64
Linux operating systems supported
RedHat EL Linux- Y
Number of displays supported
4
Operating system installed
No
Compatible operating systems
Windows 10 IoT Enterprise*|Ubuntu*|Linux*
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Software
Operating system installed
No
Compatible operating systems
Windows 10 IoT Enterprise*|Ubuntu*|Linux*
Processor special features
Intel ME Firmware Version
16.1
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Trusted Execution Technology
Yes
Intel Flex Memory Access
Yes
Execute Disable Bit
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Optane⢠Memory Ready
No
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel Virtualization Technology (VT-x)
Yes
Colour
Product colour
Black
Power
DC input voltage
12 - 20 V
Power supply type
External AC adapter
Technical details
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Processor cores
12
Cooling type
Active
Chassis type
Nettop
ARK ID
233101
Packaging data
Power cord included
Yes
Indication
LED indicators
Yes
Management features
On/off switch
Yes
Features
Number of displays supported
4
Logistics data
Harmonized System (HS) code
8471500150
Weight & dimensions
Width
117 mm
Depth
112 mm
Height
37 mm
Packaging content
Power cord included
Yes
Other features
DC input voltage
12 - 20 V
Embedded options available
No
Chassis type
Nettop
Additional headers
Front_panel (PWR- RST- 5V- 5Vsby- 3.3Vsby); Internal 2x2 power connector
Launch date
Q1'23
| Weight | 1.00 kgs |
