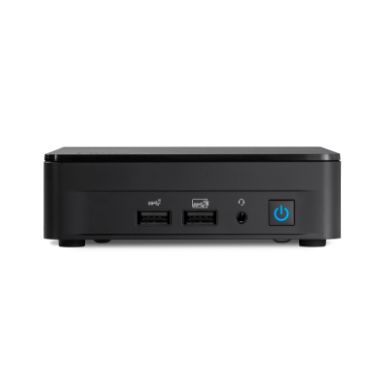

Intel NUC 13 Pro Mini PC NUC13ANKi70QC i7-1360P UCFF Intel® Core™ i7 16 GB DDR4-SDRAM 512 GB SSD
Out of Stock
|
Call For Price (0808 189 1246)
Processor
Processor generation
13th gen Intel® Core™ i7
Processor codename
Raptor Lake
Memory types supported by processor
DDR4-SDRAM
Configurable TDP-down
20 W
Processor cache type
Smart Cache
Processor cache
18 MB
Processor model
i7-1360P
Number of processors installed
1
Processor manufacturer
Intel
Processor boost frequency
5 GHz
Processor threads
16
Processor cores
12
PCI Express slots version
4.0
Processor family
Intel® Core™ i7
Performance cores
4
Efficient cores
8
Processor base power
28 W
Maximum turbo power
64 W
Efficient-core Max Turbo Frequency
3.7 GHz
Performance-core Max Turbo Frequency
5 GHz
Memory
Non-ECC
Yes
ECC
No
Memory layout (slots x size)
2 x 8 GB
Internal memory
16 GB
Maximum internal memory
64 GB
Memory slots
2x SO-DIMM
Internal memory type
DDR4-SDRAM
Memory clock speed
3200 MHz
Number of DIMM slots
2
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Storage
Storage media
SSD
Number of storage drives installed
1
Number of storage drives supported
2
Optical drive type
No
SSD interface
PCI Express 4.0
SSD capacity
512 GB
Number of SSDs installed
1
Card reader integrated
No
Total storage capacity
512 GB
SSD form factor
M.2
Total SSDs capacity
512 GB
NVMe
Yes
Graphics
Discrete graphics card
No
On-board graphics card family
Intel Iris Xe Graphics
On-board graphics card
No
Discrete graphics card model
Not available
On-board graphics card model
Intel Iris Xe Graphics
Optical drive
Optical drive type
No
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Bluetooth
Yes
Bluetooth version
5.3
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Ethernet LAN data rates
2500 Mbit/s
WLAN controller model
Intel Wi-Fi 6E AX211
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Antenna type
2x2
WLAN controller manufacturer
Intel
LAN controller
Intel I226-V
Ports & interfaces
Combo headphone/mic port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI version
2.1
USB 2.0 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
DC-in jack
Yes
M.2 card slot (wireless)
2230 (E-key) (E)
M.2 card slot (storage)
2280 NVMe (M); 2242 SATA (B)
Serial port via internal header
No
Intel® Thunderbolt 4
Yes
Thunderbolt 4 ports quantity
2
Expansion slots
PCI Express slots version
4.0
Technical details
Intel® High Definition Audio (Intel® HD Audio)
Yes
Product type
Mini PC
Trusted Platform Module (TPM)
Yes
Product colour
Black
Chassis type
UCFF
Motherboard form factor
UCFF
Cooling type
Active
Audio output channels
7.1 channels
ARK ID
233109
Design
Product colour
Black
Chassis type
UCFF
Product family
Intel NUC
Performance
Embedded options available
No
Number of displays supported
4
Market positioning
Business
ARK ID
233109
Password protection
Yes
Product type
Mini PC
Trusted Platform Module (TPM)
Yes
Motherboard form factor
UCFF
Built-in speaker(s)
No
Audio output channels
7.1 channels
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Trusted Platform Module (TPM) version
2.0
Additional headers
Front_panel (PWR- RST- 5V- 5Vsby- 3.3Vsby); Internal 2x2 power connector
Status
Launched
Software
Operating system architecture
64-bit
Compatible operating systems
Windows 10 IoT Enterprise*|Ubuntu*|Linux*
Operating system installed
Windows 11 Pro
Processor special features
Embedded options available
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Trusted Execution Technology
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Execute Disable Bit
Yes
Intel Flex Memory Access
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
CPU configuration (max)
1
Intel Virtualization Technology (VT-x)
Yes
Intel® Optane™ Memory Ready
No
Intel® High Definition Audio (Intel® HD Audio)
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Power
Power supply
120 W
DC input voltage
12 - 20 V
Weight & dimensions
Width
117 mm
Depth
112 mm
Height
37 mm
Packaging content
Display included
No
Logistics data
Harmonized System (HS) code
8471500150
Other features
Number of displays supported
4
ARK ID
233109
USB ports quantity
4
Trusted Platform Module (TPM)
Yes
On-board graphics card
No
Graphics card family
Intel
Power supply type
External AC adapter
Processor manufacturer
Intel
Cooling type
Active
Maximum resolution
7680 x 4320 pixels
Compatible operating systems
Windows 10 IoT Enterprise*|Ubuntu*|Linux*
Built-in speaker(s)
No
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Additional headers
Front_panel (PWR- RST- 5V- 5Vsby- 3.3Vsby); Internal 2x2 power connector
Number of M.2 (M) slots
1
Intel NUC 13 Pro Mini PC NUC13ANKi70QC i7-1360P UCFF Intel® Core™ i7 16 GB DDR4-SDRAM 512 GB SSD
| Weight | 1.00 kgs |
