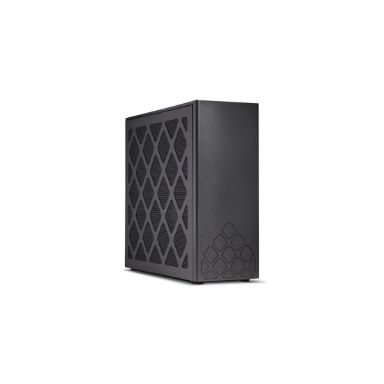

Intel NUC 13 Extreme Kit - NUC13RNGi7 Desktop Black Intel Z690 LGA 1700 i7-13700K

Processor socket

LGA 1700

Number of processors supported

1

Motherboard chipset

Intel Z690

Thermal Design Power (TDP)

125 W

Built-in processor

Yes

Processor model

i7-13700K

Processor boost frequency

5.4 GHz

Processor threads

24

Processor socket

LGA 1700

Processor cores

16

Processor family

Intel® Core™ i7

Number of processors supported

1

Motherboard chipset

Intel Z690

L2 cache

24 MB

Processor manufacturer

Intel

CPU configuration (max)

1

Processor cache

30 MB

Processor generation

13th gen Intel® Core™ i7

Memory slots type

SO-DIMM

Number of memory slots

2

Memory channels

Dual-channel

ECC

No

Supported memory types

DDR-SDRAM

Maximum internal memory

64 GB

Number of DIMM slots

2

On-board graphics card

No

Graphics card family

Intel

Supported storage drive types

HDD & SSD

Storage drive sizes supported

M.2-2.5

Storage drive interface

PCI Express- Serial ATA III

Number of storage drives supported

5

RAID levels

0- 1

SSD form factor

M.2

Maximum resolution

7680 x 4320 pixels

Number of displays supported

3

On-board graphics card

No

Graphics card family

Intel

On-board graphics card model

Intel UHD Graphics 770

Audio output channels

7.1 channels

Built-in speaker(s)

No

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Killer Wi-Fi 6E AX1690

Combo headphone/mic port

Yes

Number of SATA III connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

Microphone in

Yes

Headphone outputs

1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

2

M.2 card slot (wireless)

Killer™ Wi-Fi 6E AX1690i

USB ports quantity

11

M.2 card slot (storage)

2 via PCH + 1 via CPU (NVMe)

Thunderbolt 4 ports quantity

2

PCI Express slots version

5- 4.0

Product type

PC barebone

Cable lock slot type

Kensington

Cable lock slot

Yes

ARK ID

229784

On/off switch

Yes

LED indicators

Yes

Cooling type

Active

Product colour

Black

Chassis type

Desktop

Certification

IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 FCC Part 15B/15C/15E CISPR/EN 55032/55024 ICES-003 VCCI 32 BSMI CNS 13438 KN 32/35 AS/NZS CISPR 32 EN 300 328 EN 301 893 EN 300 440 EN 301 489-1/3/17 EN 62311 AS/NZS 4268 AS/NZS 2772.2 ARPANSA

Product family

Intel NUC

Product series

Intel NUC kit

Product codename

Raptor Canyon

Status

Launched

Maximum resolution

7680 x 4320 pixels

Windows operating systems supported

Windows 11 x64

Linux operating systems supported

Yes

BIOS type

EEPROM

Number of displays supported

3

Processor socket

LGA 1700

Operating system installed

No

Number of processors supported

1

Motherboard chipset

Intel Z690

Compatible operating systems

Windows 11 (64-bit)

Audio output channels

7.1 channels

Commodity Classification Automated Tracking System (CCATS)

G157815L2

Harmonized System (HS) code

8471500150

Export Control Classification Number (ECCN)

5A992C

Operating system installed

No

Compatible operating systems

Windows 11 (64-bit)

Intel Stable Image Platform Program (SIPP)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Trusted Execution Technology

Yes

Intel 64

Yes

Idle States

Yes

Execute Disable Bit

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Optane™ Memory Ready

Yes

Intel Rapid Storage Technology

Yes

Embedded options available

No

Intel® Platform Trust Technology (Intel® PTT)

Yes

Intel Virtualization Technology (VT-x)

Yes

Product colour

Black

BIOS type

EEPROM

Intel® AES New Instructions (Intel® AES-NI)

Yes

Cable lock slot type

Kensington

Cable lock slot

Yes

Intel Rapid Storage Technology

Yes

Embedded options available

No

RAID levels

0- 1

Processor cores

16

Cooling type

Active

Chassis type

Desktop

Sustainability certificates

ENERGY STAR- RoHS

Introduction year

2022

Warranty period

3 year(s)

ARK ID

229784

Number of SATA connectors

4

LED indicators

Yes

On/off switch

Yes

Number of displays supported

3

Harmonized System (HS) code

8471500150

Power supply type

Internal power supply unit

Power supply

750 W

Number of power supply units

1

Storage temperature (T-T)

-20 - 40 °C

Operating temperature (T-T)

0 - 35 °C

Certification

IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 FCC Part 15B/15C/15E CISPR/EN 55032/55024 ICES-003 VCCI 32 BSMI CNS 13438 KN 32/35 AS/NZS CISPR 32 EN 300 328 EN 301 893 EN 300 440 EN 301 489-1/3/17 EN 62311 AS/NZS 4268 AS/NZS 2772.2 ARPANSA

Width

337 mm

Depth

337 mm

Height

318 mm

Embedded options available

No

Number of SATA connectors

4

HDD size

2.5"

Chassis type

Desktop

Additional headers

FRONT_PANEL

Launch date

Q4'22
