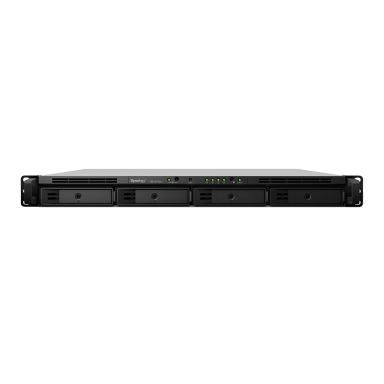

Synology RackStation RS1619XS+ NAS/storage server Ethernet LAN Rack (1U) Black
0 Reviews
| Add your review
In Stock
|
£1585.47
£1902.56 (Inc. VAT)
| Specifications | |
|---|---|
| Storage | |
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD-SSD |
| Number of storage drives supported | 4 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| RAID levels | 0-1-5-6-10-JBOD |
| Storage drive sizes supported | 2.5-3.5" |
| Number of M.2 (M & B) slots | 2 |
| Processor | |
| Thermal Design Power (TDP) | 35 W |
| Stepping | V2 |
| Scalability | 1S |
| Processor threads | 8 |
| Processor socket | BGA 1667 |
| Processor series | Intel Xeon D-1500 |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Broadwell |
| Processor code | SR2DK |
| Processor cache type | L3 |
| Processor cache | 6 MB |
| Processor boost frequency | 2.70 GHz |
| PCI Express slots version | 2.0-3.0 |
| PCI Express configurations | 1x16-1x4-1x8 |
| ECC supported by processor | Yes |
| CPU configuration (max) | 1 |
| Maximum internal memory supported by processor | 128 GB |
| Conflict Free processor | Yes |
| Processor ARK ID | 91195 |
| Processor frequency | 2.20 GHz |
| Processor family | Intel Xeon D |
| Processor model | D-1527 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Maximum RAM supported | 64 GB |
| Memory slots | 4 |
| Networking | |
| Link aggregation | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| iSCSI support | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Expansion ports quantity | 1 |
| Hard drive | |
| RAID support | Yes |
| RAID levels | 0-1-5-6-10-JBOD |
| Design | |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| LED indicators | Alarm-HDD-Power-Status |
| Chassis type | Rack (1U) |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud-iSCSI LUN |
| Product colour | Black |
| Noise level | 39.3 dB |
| Multilingual support | Yes |
| LED indicators | Alarm-HDD-Power-Status |
| Chassis type | Rack (1U) |
| Number of fans | 2 fan(s) |
| Performance | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud-iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10-Windows 7 |
| Server operating systems supported | Windows Server 2016 |
| Web-based management | Yes |
| Security algorithms | HTTPS-SSH-SSL/TLS |
| Reset button | Yes |
| Operating system installed | DiskStation Manager |
| Noise level | 39.3 dB |
| Multilingual support | Yes |
| Access Control List (ACL) | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| Security | |
| Security algorithms | HTTPS-SSH-SSL/TLS |
| Access Control List (ACL) | Yes |
| Software | |
| Windows operating systems supported | Windows 10-Windows 7 |
| Operating system installed | DiskStation Manager |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Power | |
| Power consumption (HDD standby) | 34.78 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 150 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 68.68 W |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 480 mm |
| Depth | 518.6 mm |
| Height | 44 mm |
| Weight | 8.16 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | AC |
| Processor special features | |
| UART | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 32 |
| Intel Turbo Boost Technology | 2 |
| Intel Secure Key | Yes |
| Intel OS Guard | Yes |
| Intel Hyper Threading Technology (Intel HT Technology) | Yes |
| Intel AES New Instructions (Intel AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3-SDRAM-DDR4-SDRAM |
| System requirements | |
| Windows operating systems supported | Windows 10-Windows 7 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
| Certificates | |
| Certification | EAC |
| VCCI | |
| RCM | |
| FCC | |
| CE | |
| BSMI | |
| RoHS compliance | Yes |
| Packaging data | |
| Cables included | AC |
Synology RackStation RS1619XS+ NAS/storage server Ethernet LAN Rack (1U) Black
