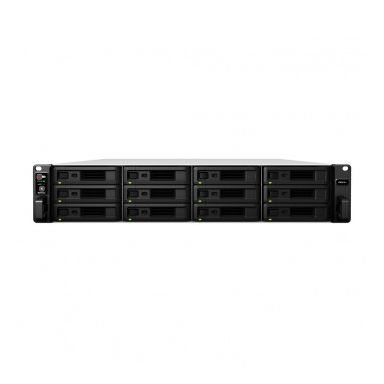

Synology RackStation RS2418+ Ethernet LAN Rack (2U) Black NAS
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Storage
Total installed storage capacity
120 TB
Storage drives installed
Yes
Installed storage drive type
HDD
Number of storage drives installed
12
Supported storage drive types
HDD-SSD
Number of storage drives supported
12
Storage drive interface
Serial ATA
Storage drive capacity
10000 GB
Storage drive size
2.5/3.5"
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
BTRFS-FAT-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-JBOD
Supported storage drive interfaces
Serial ATA-Serial ATA II-Serial ATA III
Storage drive sizes supported
2.5-3.5"
Processor
Tjunction
100 °C
Thermal Design Power (TDP)
15 W
Tcase
87 °C
Stepping
B1
Processor operating modes
64-bit
Processor lithography
14 nm
Processor cache type
Smart Cache
Processor cache
8 MB
PCI Express slots version
3
ECC supported by processor
Yes
CPU configuration (max)
1
Maximum internal memory supported by processor
256 GB
Conflict-Free processor
Yes
Processor ARK ID
97929
Processor frequency
2.1 GHz
Processor family
Intel Atom¢â¢
Processor model
C3538
Processor cores
4
Memory
Internal memory type
DDR4
Internal memory
4 GB
Maximum RAM supported
64 GB
Memory slots
4
Network
Link aggregation
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Wi-Fi
No
Wake-on-LAN ready
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
4
Hard drive
RAID support
Yes
Supported file systems
BTRFS-FAT-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-JBOD
Design
Cooling type
Active
Fan diameter
8 cm
Product colour
Black
Number of fans
4 fan(s)
Chassis type
Rack (2U)
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud-iSCSI LUN
Product colour
Black
Number of users
2048 user(s)
Noise level
54 dB
Multilingual support
Yes
Chassis type
Rack (2U)
Number of fans
4 fan(s)
Performance
System log
Yes
Hot spare
Yes
Browser supported
Chrome- Firefox- Internet Explorer 10- Safari
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud-iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 7
Mac operating systems supported
Yes
Security algorithms
HTTPS-SSL/TLS
Reset button
Yes
Operating system installed
DiskStation Manager
Number of users
2048 user(s)
Noise level
54 dB
Multilingual support
Yes
Access Control List (ACL)
Yes
Cooling
Cooling type
Active
Fan diameter
8 cm
Number of fans
4 fan(s)
Security
Security algorithms
HTTPS-SSL/TLS
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7
Mac operating systems supported
Yes
Operating system installed
DiskStation Manager
Management features
On/off switch
Yes
Reset button
Yes
Power
Power consumption (HDD standby)
52.4 W
Power supply location
Built-in
Power supply unit (PSU) capacity
500 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
109 W
Number of power supply units
1
Weight & dimensions
Width
482 mm
Depth
696 mm
Height
88 mm
Weight
13.2 kg
Packaging content
Quick installation guide
Yes
Cables included
AC
Processor special features
Maximum number of PCI Express lanes
12
Intel Turbo Boost Technology
No
Intel Secure Key
Yes
Intel OS Guard
Yes
Intel Hyper Threading Technology (Intel HT Technology)
No
Intel AES New Instructions (Intel AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Secure Boot
Yes
Execute Disable Bit
Yes
Embedded options available
Yes
Memory channels supported by processor
Dual
System requirements
Windows operating systems supported
Windows 10-Windows 7
Mac operating systems supported
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Certification
EAC
VCCI
CCC
RCM
FCC
CE
BSMI
RoHS compliance
Yes
Packaging data
Cables included
AC
Synology RackStation RS2418+ Ethernet LAN Rack (2U) Black NAS
| Length | 69.60 cm |
| Width | 48.20 cm |
| Height | 8.80 cm |
| Weight | 13.200000 kgs |
