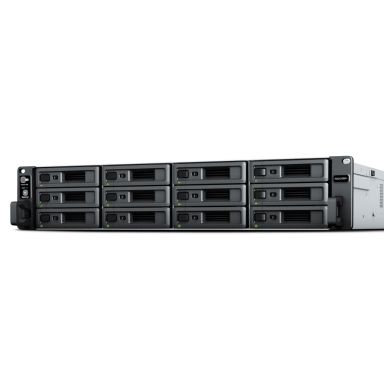

Synology RackStation RS2423+ NAS/storage server Rack (2U) Ethernet LAN Black, Grey V1780B
In Stock
|
Call For Price
(0808 189 1246)
Storage
Online RAID migration
Yes
Online RAID expansion
Yes
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
12
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
RAID levels
0, 1, 5, 6, 10, JBOD
Supported storage drive interfaces
Serial ATA
Storage drive sizes supported
2.5,3.5"
Processor
Processor manufacturer
AMD
Processor boost frequency
3.6 GHz
Processor frequency
3.35 GHz
Processor family
AMD Ryzen
Processor model
V1780B
Processor cores
4
Number of processors supported
1
Memory
Internal memory type
DDR4
Internal memory
8 GB
Maximum RAM supported
32 GB
Memory slots
2
Memory form factor
UDIMM
ECC
Yes
Network
Link aggregation
Yes
Ethernet LAN data rate supported (max)
10000 Mbit/s
Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000,10000 Mbit/s
Wake-on-LAN ready
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
PCI Express x8 (Gen 3.x) slots
1
Ethernet LAN (RJ-45) ports
3
Hard drive
RAID support
Yes
Supported file systems
BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
RAID levels
0, 1, 5, 6, 10, JBOD
Design
Built-in speaker(s)
No
Cooling type
Active
Fan diameter
6 cm
Built-in display
No
Product colour
Black, Grey
Number of fans
3 fan(s)
LED indicators
Yes
Chassis type
Rack (2U)
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud, iSCSI LUN
Built-in display
No
Card reader integrated
No
Product colour
Black, Grey
Noise level
52.3 dB
Multilingual support
Yes
LED indicators
Yes
Chassis type
Rack (2U)
Number of fans
3 fan(s)
Sustainability compliance
Yes
Sustainability certificates
CE, RoHS
Compliance certificates
CE, RoHS
Performance
Built-in FTP server
Yes
System log
Yes
Browser supported
Google Chrome Firefox Microsoft Edge Safari
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud, iSCSI LUN
Card reader integrated
No
Security algorithms
AES
Operating system version
7.1.1
Operating system installed
DiskStation Manager
Noise level
52.3 dB
Multilingual support
Yes
Management protocols
SNMP
Access Control List (ACL)
Yes
Snapshot
Yes
Cooling
Cooling type
Active
Fan diameter
6 cm
Number of fans
3 fan(s)
Security
Security algorithms
AES
Access Control List (ACL)
Yes
Software
Operating system version
7.1.1
Operating system installed
DiskStation Manager
Management features
Management protocols
SNMP
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
500 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Redundant power supply (RPS) support
No
Power consumption (typical)
119.95 W
Number of power supply units
1
External power adapter
No
Weight & dimensions
Width
482 mm
Depth
562 mm
Height
88 mm
Weight
11.5 kg
Packaging content
Rack mount kit
Yes
External power adapter
No
Cables included
AC
Power cables quantity
1
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Certification
FCC
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL
Packaging data
Cables included
AC
Synology RackStation RS2423+ NAS/storage server Rack (2U) Ethernet LAN Black, Grey V1780B
