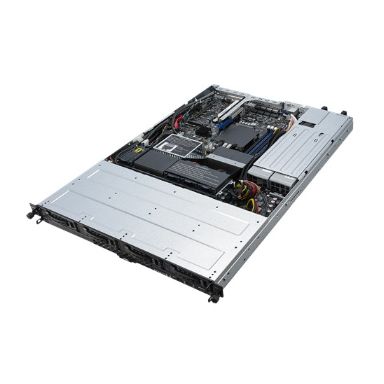

ASUS RS300-E10-RS4 Intel® Xeon® E rack-optimized 1U server designed for storage and power effic
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Processor
Built-in processor
No
Processor socket
LGA 1151 (Socket H4)
Number of processors supported
1
Motherboard chipset
Intel C242
Design
80 PLUS certification
80 PLUS Gold
Reset button
Yes
On/off switch
Yes
Product colour
Black- Metallic
Chassis type
Rack (1U)
Memory
Supported UDIMM clock speeds
2400-2666 MHz
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB- 8GB- 16GB
Number of DIMM slots
4
Non-ECC
Yes
Maximum UDIMM memory
64 GB
Maximum internal memory
64 GB
ECC
Yes
Storage
Number of storage drives supported
4
Supported storage drive interfaces
M.2- Serial ATA III
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5-3.5-M.2
Graphics
On-board graphics card model
Aspeed AST2500
On-board graphics card memory
64 MB
Network
LAN controller
Intel I210
Ethernet LAN data rates
1000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Number of SATA III connectors
6
VGA (D-Sub) ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
4
COM ports quantity
1
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Number of M.2 (M) slots
2
Features
Harmonized System (HS) code
84714100
Technical details
PCI Express x8 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Number of storage drives supported
4
Reset button
Yes
On/off switch
Yes
Chassis type
Rack (1U)
Harmonized System (HS) code
84714100
Colour
Product colour
Black- Metallic
Power
AC input voltage
100 - 240 V
AC input frequency
47 - 63 Hz
Input current
0.33333333333333
Number of redundant power supplies installed
2
Number of redundant power supplies supported
2
Redundant power supply (RPS) support
Yes
Power supply
450 W
80 PLUS certification
80 PLUS Gold
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
10 - 35 °C
Weight & dimensions
Width
24.2" (615 mm)
Weight
28.4 lbs (12.9 kg)
Height
1.73" (44 mm)
Depth
17.5" (444 mm)
Package weight
41.9 lbs (19 kg)
Packaging data
Package weight
41.9 lbs (19 kg)
Other features
Reset button
Yes
ASUS RS300-E10-RS4 Intel® Xeon® E rack-optimized 1U server designed for storage and power effic
