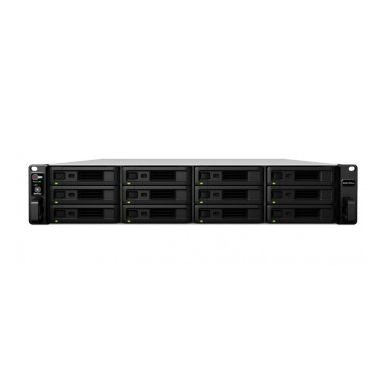

Synology RS3617RPXS/168TB-TE NAS/storage server Ethernet LAN Rack (3U) Black
In Stock
|
Call For Price
(0808 189 1246)
Processor
Processor Frequency
2.40 GHz
Processor Model
D-1521
Processor Cores
4
CPU Configuration (Max)
1
ECC Supported By Processor
Yes
PCI Express Configurations
1x16- 1x4- 1x8
PCI Express Slots Version
2.0- 3.0
Processor Boost Frequency
2.70 GHz
Processor Cache
6 MB
Processor Code
SR2DF
Processor Codename
Broadwell
Processor Lithography
14 nm
Processor Operating Modes
64-bit
Processor Package Size
37.5 x 37.5 mm
Processor Series
Intel Xeon D-1500
Processor Socket
BGA 1667
Processor Threads
8
Scalability
1S
Stepping
V2
Thermal Design Power (Tdp)
45 W
Maximum Internal Memory Supported By Processor
128 GB
Conflict Free Processor
Yes
Processor Ark Id
91202
Memory
Internal Memory
8 GB
Internal Memory Type
DDR4
Ports & Interfaces
Ethernet LAN (RJ-45) Ports
4
USB Port
Yes
USB 3.0 (3.1 Gen 1) Type-A Ports Quantity
2
Weight & Dimensions
Width
430.5 mm
Depth
692 mm
Height
88 mm
Power
Power Supply Location
Built-in
Power Supply Unit (Psu) Capacity
500 W
Number Of Power Supply Units
2
Redundant Power Supply (Rps) Support
Yes
AC Input Voltage
100-240 V
AC Input Frequency
50/60 Hz
Operational Conditions
Operating Temperature (T-T)
5 - 35 °C
Operating Relative Humidity (H-H)
34820
Storage Temperature (T-T)
-20 - 60 °C
Networking
Ethernet LAN
Yes
Ethernet LAN Data Rates
10- 100- 1000 Mbit/s
Iscsi Support
Yes
Wake-On-LAN Ready
Yes
Storage
Storage Drives Installed
Yes
Installed Storage Drive Type
HDD
Supported Storage Drive Types
HDD- SSD
Number Of Storage Drives Supported
12
Storage Drive Size
2.5/3.5
Raid Support
Yes
Hot-Swap Drive Bays
Yes
Supported Storage Drive Interfaces
Serial ATA
Raid Levels
0- 1- 5- 6- 10- JBOD
Supported File Systems
BTRFS- ext4
Certificates
Rohs Compliance
No
Software
Operating System Installed
DiskStation Manager
Windows Operating Systems Supported
Yes
Packaging Content
Cables Included
AC
Design
Chassis Type
Rack (3U)
Cooling Type
Active
Product Colour
Black
Number Of Fans
4 fan(s)
Fan Diameter
80 m
LED Indicators
Yes
Built-In Display
No
Performance
Type
NAS
Backup Function
Yes
Backup Features
iSCSI LUN
Access Control List (Acl)
Yes
Synology RS3617RPXS/168TB-TE NAS/storage server Ethernet LAN Rack (3U) Black
