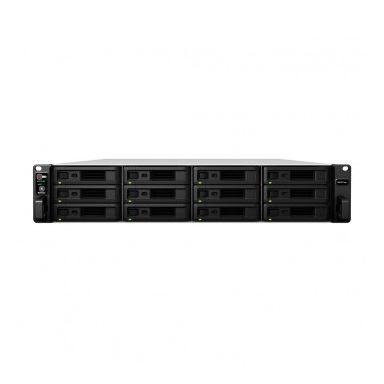

Synology RackStation RS3617xs+ D-1531 Ethernet LAN Rack (2U) Black NAS
In Stock
|
Call For Price
(0808 189 1246)
Storage
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
12
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
BTRFSFATHFS+NTFSexFAText3ext4
RAID levels
015610JBOD
Supported storage drive interfaces
Serial ATA Serial ATA II Serial ATA III
Storage drive sizes supported
2.53.5"
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
45 W
Stepping
V2
Scalability
1S
Processor threads
12
Processor socket
BGA 1667
Processor series
Intel Xeon D-1500
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Broadwell
Processor code
SR2DG
Processor cache type
L3
Processor cache
9 MB
Processor boost frequency
2.7 GHz
PCI Express slots version
2.03.0
PCI Express configurations
1x161x41x8
ECC supported by processor
Yes
CPU configuration (max)
1
Maximum internal memory supported by processor
128 GB
Conflict-Free processor
Yes
Processor ARK ID
91203
Processor frequency
2.2 GHz
Processor family
Intel Xeon D
Processor model
D-1531
Processor cores
6
Memory
Internal memory type
DDR4
Internal memory
8 GB
Maximum RAM supported
64 GB
Memory slots
4
Network
Link aggregation
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
101001000 Mbit/s
Wi-Fi
No
Wake-on-LAN ready
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
PCI Express x8 (Gen 3.x) slots
2
Ethernet LAN (RJ-45) ports
6
Expansion ports quantity
2
Hard drive
RAID support
Yes
Supported file systems
BTRFSFATHFS+NTFSexFAText3ext4
RAID levels
015610JBOD
Design
Cooling type
Active
Fan diameter
3.15" (8 cm)
Product colour
Black Gray
Number of fans
4 fan(s)
LED indicators
HDD Power
Chassis type
Rack (2U)
Technical details
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
Backup features
Cloud iSCSI LUN
Product colour
Black Gray
Number of users
16000 user(s)
Noise level
50.2 dB
Multilingual support
Yes
LED indicators
HDD Power
Chassis type
Rack (2U)
Number of fans
4 fan(s)
Sustainability certificates
RoHS
Performance
Built-in FTP server
Yes
System log
Yes
S.M.A.R.T. support
Yes
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
Backup features
Cloud iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Web-based management
Yes
Reset button
Yes
Operating system installed
DiskStation Manager
Number of users
16000 user(s)
Noise level
50.2 dB
Multilingual support
Yes
Access Control List (ACL)
Yes
Snapshot
Yes
Cooling
Cooling type
Active
Fan diameter
3.15" (8 cm)
Number of fans
4 fan(s)
Security
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operating system installed
DiskStation Manager
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
500 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Redundant power supply (RPS) support
Yes
Power consumption (typical)
133.9 W
Power consumption (sleep)
69.18 W
Number of power supply units
2
Weight & dimensions
Width
16.9" (430.5 mm)
Depth
27.2" (692 mm)
Height
3.46" (88 mm)
Weight
32 lbs (14.5 kg)
Packaging content
Quick installation guide
Yes
Cables included
AC
Processor special features
UART
Yes
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
32
Intel Turbo Boost Technology
2
Intel Secure Key
Yes
Intel OS Guard
Yes
Intel Hyper Threading Technology (Intel HT Technology)
Yes
Intel AES New Instructions (Intel AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Secure Key Technology version
1
Intel Enhanced Halt State
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Memory channels supported by processor
Dual
Memory types supported by processor
DDR3-SDRAMDDR4-SDRAM
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Certification
FCC A CE A BSMI A
Packaging data
Cables included
AC
Other features
Processor ARK ID
91203
Digital Living Network Alliance (DLNA) certified
Yes
Synology RackStation RS3617xs+ D-1531 Ethernet LAN Rack (2U) Black NAS
| Length | 69.20 cm |
| Width | 43.05 cm |
| Height | 8.80 cm |
| Weight | 14.510000 kgs |
