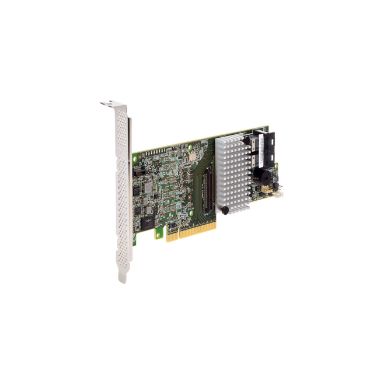

Intel RS3DC080 RAID controller PCI Express x8 3.0 12 Gbit/s
Out of Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Supported storage drive interfaces
SAS- Serial ATA
Host interface
PCI Express x8
PCI Express slots version
3.0
PCI Card form factor
Half-height (low-profile)
Memory
Internal memory
1024 MB
Internal memory type
DDR3
Memory clock speed
1866 MHz
Performance
RAID ARK ID
77346
RAID levels
0- 1- 10- 5- 50- 6- 60
Internal memory
1024 MB
SSD support
Yes
Internal memory type
DDR3
Chipset
LSI3108
Memory clock speed
1866 MHz
Sustained data transfer rate (native)
12288 MB/s
Number of devices supported
128
Form factor
Low Profile MD2 Card
Data transfer rate
12 Gbit/s
Connector orientation
Side
Compatible battery backup options
AXXRMFBU4
Harmonized System (HS) code
84733080
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G134612
JBOD function
Yes
Data transmission
Data transfer rate
12 Gbit/s
Technical details
RAID levels
0- 1- 10- 5- 50- 6- 60
SSD support
Yes
Chipset
LSI3108
Sustained data transfer rate (native)
12288 MB/s
Number of devices supported
128
Form factor
Low Profile MD2 Card
Connector orientation
Side
Compatible operating systems
Windows- Linux- VMWare
Compatible battery backup options
AXXRMFBU4
Supported devices
SAS/SATA
Internal ports
8
Product type
RAID
Processor model
LSISAS3108
Data transfer rate
12288 Mbit/s
Status
Launched
RAID connector orientation
Side
Product name
Intel RAID Controller RS3DC080
PCI Express host interface
PCIe x8 Gen3
Market segment
Server
Launch date
Q3'13
Born on date
Q3'13
Last change
63903513
Target market
Mainstream
Last order date
2019-08-03 05:00:37
Expected discontinuance date
Q2'23
Packaging content
Raid Controller- Quick Start User Guide- 1 standard & 1 Low Profile bracket.
Processor
Processor model
LSISAS3108
Design
Form factor
Low Profile MD2 Card
Connector orientation
Side
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
No
Linux operating systems supported
Yes
Compatible operating systems
Windows- Linux- VMWare
Weight & dimensions
Packaging content
Raid Controller- Quick Start User Guide- 1 standard & 1 Low Profile bracket.
Packaging content
Packaging content
Raid Controller- Quick Start User Guide- 1 standard & 1 Low Profile bracket.
Logistics data
Harmonized System (HS) code
84733080
Other features
RAID ARK ID
77346
PCI Card form factor
Half-height (low-profile)
Compatible operating systems
Windows- Linux- VMWare
Supported devices
SAS/SATA
Internal ports
8
Market segment
Server
Product series
Intel® RAID Controllers
Intel RS3DC080 RAID controller PCI Express x8 3.0 12 Gbit/s
| Weight | 0.30 kgs |
