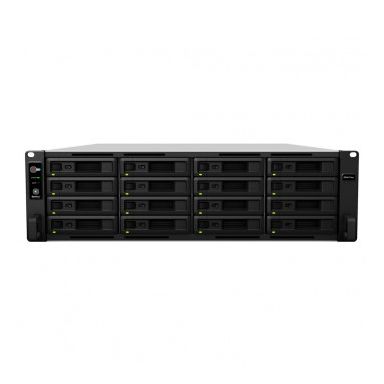

Synology RackStation RS4017xs+ D-1541 Ethernet LAN Rack (3U) Black,Grey NAS
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Storage
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD-SSD
Number of storage drives supported
16
Maximum supported storage capacity
160 TB
Storage drive interface
Serial ATA
Storage drive size
2.5/3.5"
Hot-swap drive bays
Yes
RAID support
Yes
RAID levels
0-1-5-6-10-JBOD
Storage drive sizes supported
2.5-3.5"
Processor
Thermal Design Power (TDP)
45 W
Stepping
V2
Scalability
1S
Processor threads
16
Processor socket
BGA 1667
Processor series
Intel Xeon D-1500
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Broadwell
Processor code
SR2DE
Processor cache
12 MB
Processor boost frequency
2.70 GHz
PCI Express slots version
2.0-3.0
PCI Express configurations
1x16-1x4-1x8
ECC supported by processor
Yes
CPU configuration (max)
1
Maximum internal memory supported by processor
128 GB
Conflict-Free processor
Yes
Processor ARK ID
91199
Processor frequency
2.10 GHz
Processor family
Intel Xeon D
Processor model
D-1541
Processor cores
8
Memory
Internal memory type
DDR4
Internal memory
8 GB
Maximum RAM supported
64 GB
Memory slots
4
Network
Ethernet LAN data rate supported (max)
10000 Mbit/s
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000-10000 Mbit/s
Wake-on-LAN ready
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
6
Hard drive
RAID support
Yes
RAID levels
0-1-5-6-10-JBOD
Design
Cooling type
Active
Fan diameter
8 cm
Built-in display
No
Product colour
Black-Grey
Number of fans
3 fan(s)
LED indicators
Yes
Chassis type
Rack (3U)
Technical details
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
Built-in display
No
Product colour
Black-Grey
Number of users
1600 user(s)
Noise level
44.7 dB
Multilingual support
Yes
LED indicators
Yes
Chassis type
Rack (3U)
Number of fans
3 fan(s)
Performance
S.M.A.R.T. support
Yes
Mac compatibility
Yes
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
On/off switch
Yes
Security algorithms
HTTPS-SSL/TLS
Reset button
Yes
Operating system installed
DiskStation Manager
Number of users
1600 user(s)
Noise level
44.7 dB
Multilingual support
Yes
Access Control List (ACL)
Yes
Cooling
Cooling type
Active
Fan diameter
8 cm
Number of fans
3 fan(s)
Security
Security algorithms
HTTPS-SSL/TLS
Access Control List (ACL)
Yes
Software
Mac compatibility
Yes
Operating system installed
DiskStation Manager
Management features
On/off switch
Yes
Reset button
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
800 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Redundant power supply (RPS) support
Yes
Power consumption (typical)
136.4 W
Power consumption (sleep)
69.2 W
Number of power supply units
2
Weight & dimensions
Width
482 mm
Depth
656.5 mm
Height
132.3 mm
Weight
17.4 kg
Packaging content
Package type
Box
Quick installation guide
Yes
Cables included
AC
Processor special features
UART
Yes
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
32
Intel Turbo Boost Technology
2
Intel Secure Key
Yes
Intel OS Guard
Yes
Intel Hyper Threading Technology (Intel HT Technology)
Yes
Intel AES New Instructions (Intel AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Enhanced Halt State
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Memory channels supported by processor
Dual
Memory types supported by processor
DDR3-SDRAM-DDR4-SDRAM
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 5000 m
Certificates
Digital Living Network Alliance (DLNA) certified
Yes
RoHS compliance
Yes
Packaging data
Cables included
AC
Other features
Processor ARK ID
91199
Synology RackStation RS4017xs+ D-1541 Ethernet LAN Rack (3U) Black,Grey NAS
| Length | 65.65 cm |
| Width | 48.20 cm |
| Height | 13.23 cm |
| Weight | 17.400000 kgs |
