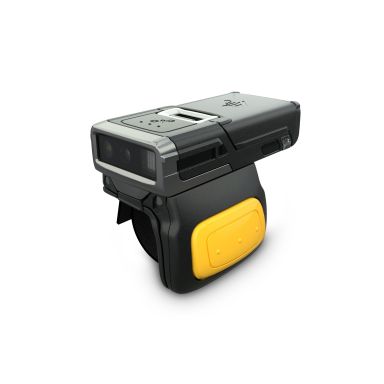

Zebra RS5100 Wearable bar code reader 1D/2D Laser Black

Type

Wearable bar code reader

Linear (1D) barcodes supported

Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, UPC-A, UPC-E

2D (matrix & stacked) barcodes supported

Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39

Yaw reading angle

0 - 360°

Wavelength

655 nm

Tilt reading angle

-60 - 60°

Sensor type

Laser

Scanner type

1D/2D

Pitch reading angle

-60 - 60°

Light levels (direct sunlight)

0 - 107639 lx

Optical sensor resolution (W x H)

1280 x 960 pixels

Connectivity technology

Wireless

Bluetooth version

5.2

Bluetooth Low Energy (BLE)

Yes

Standard interfaces

Bluetooth

Near Field Communication (NFC)

Yes

LED indicators

Yes

Product colour

Black

Light levels (direct sunlight)

0 - 107639 lx

Type

Wearable bar code reader

LED indicators

Yes

Product colour

Black

Power source type

Battery

Battery type

Built-in battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

480 mAh

Width

28 mm

Depth

21 mm

Height

61 mm

Weight

70 g

Type

Wearable bar code reader

LED indicators

Yes

Product colour

Black

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

5 - 95%

Light levels (direct sunlight)

0 - 107639 lx
