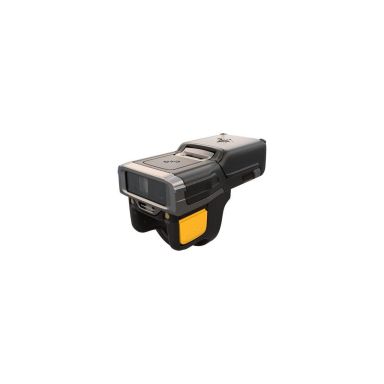

Zebra RS6100 Wearable bar code reader 2D LED Grey, Yellow

Type

Wearable bar code reader

Linear (1D) barcodes supported

Codabar, Code 128, Code 39, Code 93, MSI, Standard 2 of 5

2D (matrix & stacked) barcodes supported

Aztec Code, Chinese Sensible Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39

Yaw reading angle

60 - 60°

Wavelength

515 nm

Sensor type

LED

Scanner type

2D

Pitch reading angle

60 - 60°

Light levels (direct sunlight)

107.639 - 107.639 lx

Optical sensor resolution (W x H)

2688 x 1520 pixels

Connectivity technology

Wired & Wireless

Bluetooth version

5.2

Bluetooth Low Energy (BLE)

Yes

Standard interfaces

Bluetooth

Near Field Communication (NFC)

Yes

Protection features

Drop resistant, Electrostatic Discharge (ESD) protection, Vibration proof

International Protection (IP) code

IP65

Product colour

Grey, Yellow

Light levels (direct sunlight)

107.639 - 107.639 lx

Type

Wearable bar code reader

Protection features

Drop resistant, Electrostatic Discharge (ESD) protection, Vibration proof

International Protection (IP) code

IP65

Product colour

Grey, Yellow

Power source type

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

735 mAh

Width

66.6 mm

Depth

32.7 mm

Height

21 mm

Weight

76 g

Type

Wearable bar code reader

Protection features

Drop resistant, Electrostatic Discharge (ESD) protection, Vibration proof

International Protection (IP) code

IP65

Product colour

Grey, Yellow

Warranty period

1 year(s)

Compliance certificates

REACH, RoHS

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

5 - 95%

Drop resistance

1.8 m

Light levels (direct sunlight)

107.639 - 107.639 lx
