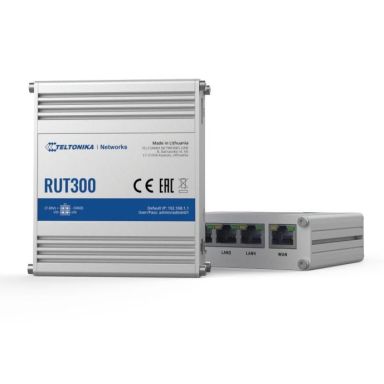

TELTONIKA NETWORKS RUT300 INDUSTRIAL ETHERNET

Flash memory

16 MB

Internal memory

64 MB

Internal memory type

DDR2

Flash memory

16 MB

Internal memory

64 MB

Built-in processor

Yes

Processor frequency

650 MHz

Processor model

Qualcomm Atheros QCA9531

Ethernet WAN

Yes

SIM card slot

No

3G/4G USB modem compatibility

No

Auto MDI/MDI-X

Yes

Networking standards

IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u

VLAN support

Yes

Ethernet interface type

Fast Ethernet

Reset button

Yes

Quality of Service (QoS) support

Yes

USB ports quantity

1

USB version

2

Ethernet LAN (RJ-45) ports

5

Management protocols

FOTA, SSH, OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem, MQTT Broker, MQTT publisher, SNMP, JSON-RPC, RMS

VoIP protocols

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Supported network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned)

Built-in processor

Yes

Processor frequency

650 MHz

Product colour

Blue, Metallic

DoS attack prevention

Yes

Firewall

Yes

Firewall security

Port forwards, traffic rules, NAT rules, custom rules

Security algorithms

HTTPS

MAC address filtering

Yes

VPN support

OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPSecIKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) GREGRE tunnel PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3 support (planned) Stunnel (planned)Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN (planned_Method of building scalable IPsec VPNs SSTP (planned)SSTP client instance support ZeroTier (optional)ZeroTier VPN client support (not available in standard FW) WireGuard (optional)WireGuard VPN client and server support (not available in standard FW)

ARP attack prevention

Yes

Access Control List (ACL)

Yes

ICMP attack prevention

Yes

Internal memory type

DDR2

Flash memory

16 MB

Internal memory

64 MB

Built-in processor

Yes

Processor frequency

650 MHz

Processor model

Qualcomm Atheros QCA9531

Housing material

Aluminium

Product colour

Blue, Metallic

Power source type

DC, PoE

Operating temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

10 - 90%

Width

100 mm

Depth

85 mm

Height

30 mm

Weight

229 g
