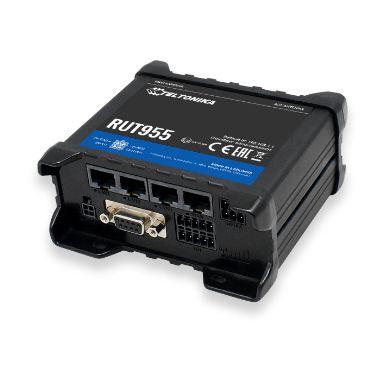

Teltonika RUT955 Wireless Router Fast Ethernet Single-Band (2.4 GHz) 3G 4G Black (RUT955T033B0)

Ethernet WAN

Yes

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN

Yes

Full duplex

Yes

Ethernet LAN data rates

10,100 Mbit/s

Auto MDI/MDI-X

Yes

Cabling technology

10/100Base-T(X)

DSL WAN

No

SIM card slot

Yes

3G/4G USB modem compatibility

Yes

Mobile network generation

4G

3G

Yes

4G

Yes

Short Message Service (SMS)

Yes

2G standards

Edge, GPRS

3G standards

DC-HSPA+, TD-SCDMA, UMTS

4G standard

LTE

Dual SIM support

Yes

Wake-on-LAN ready

Yes

Short Message Service (SMS)

Yes

Network address translation (NAT)

Yes

Management protocols

HTTP/HTTPS, SNMP, SNMP trap, JSON-RPC, RMS, MQTT, TR-069

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN

Yes

VPN support

OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, SSTP

Port forwarding

Yes

Networking standards

IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Full duplex

Yes

Flow control support

Yes

Ethernet LAN data rates

10,100 Mbit/s

Auto MDI/MDI-X

Yes

Cabling technology

10/100Base-T(X)

Static route

Yes

Load balancing system

Yes

Dynamic DNS (DDNS)

Yes

DMZ support

Yes

Universal Plug and Play (UPnP)

Yes

Supported network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, WakeOnLan

Management protocols

HTTP/HTTPS, SNMP, SNMP trap, JSON-RPC, RMS, MQTT, TR-069

Universal Plug and Play (UPnP)

Yes

Web-based management

Yes

Wake-on-LAN ready

Yes

Reset button

Yes

Quality of Service (QoS) support

Yes

VPN support

OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, SSTP

URL filtering

Yes

System event log

Yes

Security algorithms

802.1x RADIUS, PEAP, SSL/TLS, TKIP, TTLS, WEP, WPA-PSK, WPA2, WPA2-PSK

Network address translation (NAT)

Yes

NAT functionality

NAT, NAT-T

MAC address filtering

Yes

Firewall

Yes

DoS attack prevention

Yes

DMZ support

Yes

Authentication method

Radius

Filtering

Yes

Processor frequency

550 MHz

Mean time between failures (MTBF)

230000 h

Maximum memory card size

32 GB

Compatible memory cards

MicroSD (TransFlash)

Built-in processor

Yes

Internal memory

128 MB

Flash memory

16 MB

Memory card slot(s)

Yes

Safety

IP30

Certification

CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance EN61000-4-2:2009 EN 61000-4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2006 EN 61000-4-5:2014, 7.1 / ITU-T K21 ISO 7632-2:2004 EN 61000-4-6:2009 EN 61000-4-11:2004 EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 303 413 V1.1.0 AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017 FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017) RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1 IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 AS/NZS 60950.1:2015 EN 50665:2017, EN 62311:2008 FCC 47 CFR Part 1 1.1310 RSS-102 Issue 5 (2015) LST EN 60529:1999+A1+AC:2002 EN 60068-2-6:2008

Ethernet WAN

Yes

DSL WAN

No

SIM card slot

Yes

3G/4G USB modem compatibility

Yes

Dual SIM support

Yes

WAN connection type

RJ-45

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wi-Fi band

Single-band (2.4 GHz)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

USB port

Yes

USB 2.0 ports quantity

1

Maximum memory card size

32 GB

Ethernet LAN (RJ-45) ports

3

DC-in jack

Yes

Compatible memory cards

MicroSD (TransFlash)

Memory card slot(s)

Yes

Product type

Tabletop router

LED indicators

Status

Housing material

Aluminium, Plastic

Product colour

Black

Indication light

Yes

Quick start guide

Yes

Cables included

LAN (RJ-45)

AC adapter included

Yes

Internal memory

128 MB

Flash memory

16 MB

Antenna design

External

Antennas quantity

5

Antenna connector type

SMA/RP-SMA

Safety

IP30

Processor frequency

550 MHz

Mean time between failures (MTBF)

230000 h

Certification

CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance EN61000-4-2:2009 EN 61000-4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2006 EN 61000-4-5:2014, 7.1 / ITU-T K21 ISO 7632-2:2004 EN 61000-4-6:2009 EN 61000-4-11:2004 EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 303 413 V1.1.0 AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017 FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017) RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1 IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 AS/NZS 60950.1:2015 EN 50665:2017, EN 62311:2008 FCC 47 CFR Part 1 1.1310 RSS-102 Issue 5 (2015) LST EN 60529:1999+A1+AC:2002 EN 60068-2-6:2008

Built-in processor

Yes

Internal memory

128 MB

Flash memory

16 MB

Harmonized System (HS) code

85176990

Power source type

DC

Output voltage

9 - 30 V

Operating temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

10 - 90%

Width

100 mm

Weight

287 g

Height

50 mm

Depth

110 mm

Quick start guide

Yes

Cables included

LAN (RJ-45)

AC adapter included

Yes

Harmonized System (HS) code

85176990
