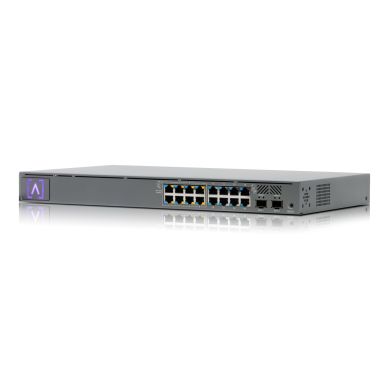

Alta Labs S16-POE network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
In Stock
|
$359.68
$431.62 (Inc. VAT)
Management features
Reset button
Yes
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Network
IGMP snooping
Yes
Active link detection
Yes
Auto-sensing
Yes
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
VLAN support
Yes
Rate limiting
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
10G support
No
Auto-negotiation
Yes
Virtual LAN features
Stacked VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Stacked VLAN
Performance
Packet buffer memory
4.1 MB
Stackable
No
Auto-negotiation
Yes
Power
Power connector
AC-in jack
Power consumption (max)
143 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
23 W
Number of power supply units
1
Power source
AC
Technical details
Form factor
1U
Product colour
Grey
Stackable
No
Housing material
Steel
Rack mounting
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Power connector
AC-in jack
Data transmission
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
36 Gbit/s
Forwarding rate
26800 Mpps
Throughput
18 Gbit/s
Security
IGMP snooping
Yes
Authentication type
IEEE 802.1x
Multicast features
Multicast support
Yes
Certificates
Certification
CE, FCC, IC
Memory
Packet buffer memory
4.1 MB
Design
Wall mountable
Yes
Reset button
Yes
Form factor
1U
Product colour
Grey
Stackable
No
LED indicators
Network, PoE
Housing material
Steel
Certification
CE, FCC, IC
Rack mounting
Yes
Indication
LED indicators
Network, PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Active PoE
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
441.5 mm
Depth
254 mm
Height
44 mm
Weight
3.6 kg
Packaging data
Package type
Box
Rack mount kit
Yes
Quick start guide
Yes
User guide
No
Manual
No
Cables included
AC
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
Packaging content
Rack mount kit
Yes
Quick start guide
Yes
User guide
No
Manual
No
Cables included
AC
